SL100TWC Bathroom Shower Extractor Light Fan Kit 100mm 4"

SL100TWC Bathroom Shower Extractor Light Fan Kit 100mm 4"

£40.00
£0.00 £40.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

SF100 Fan is designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely, all SL100TWC fans come with timer if this is not needed please see below how to wire it out.

Powerful, yet extremely quiet in operation, the extract rate is 100m³/hr (27 ltr/sec).

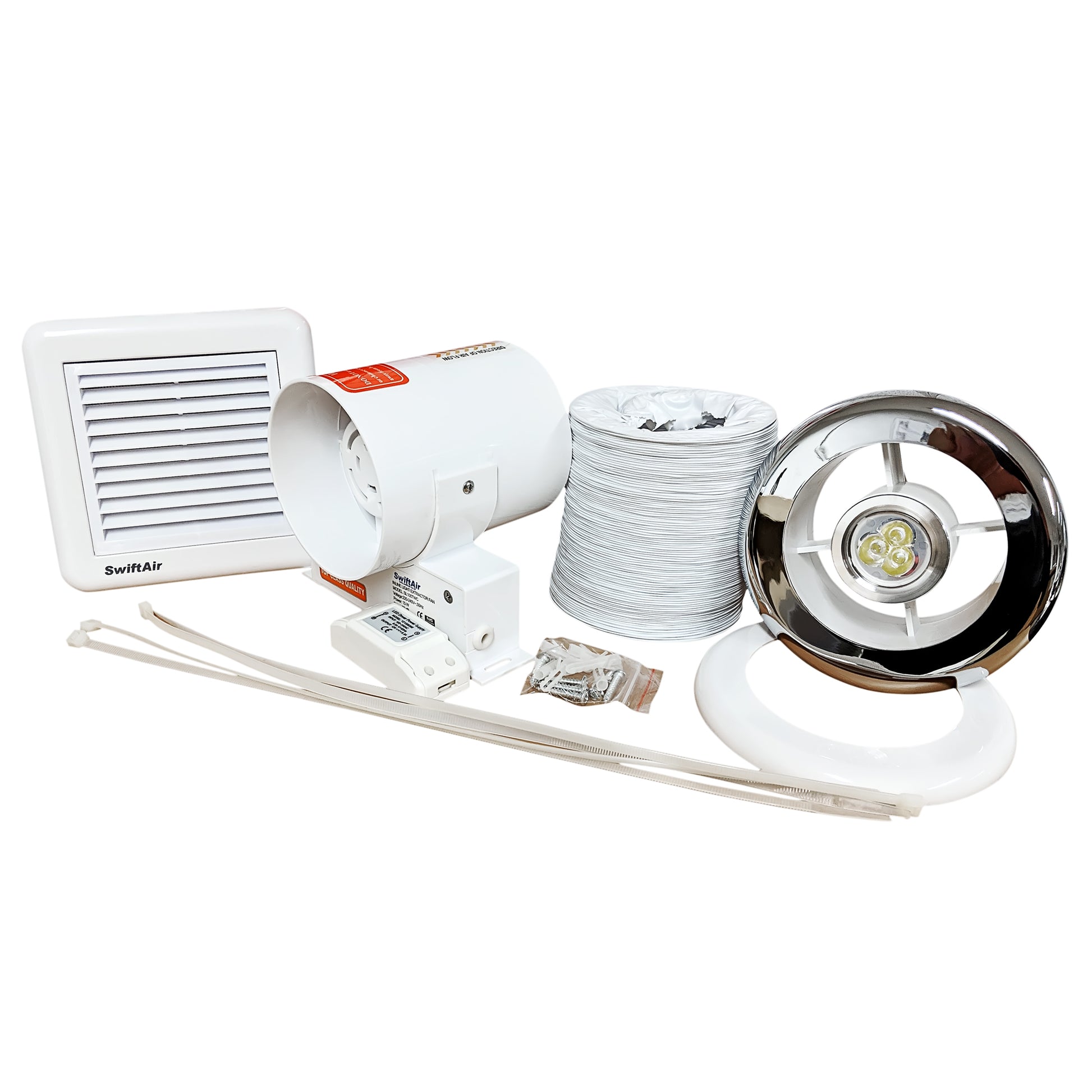

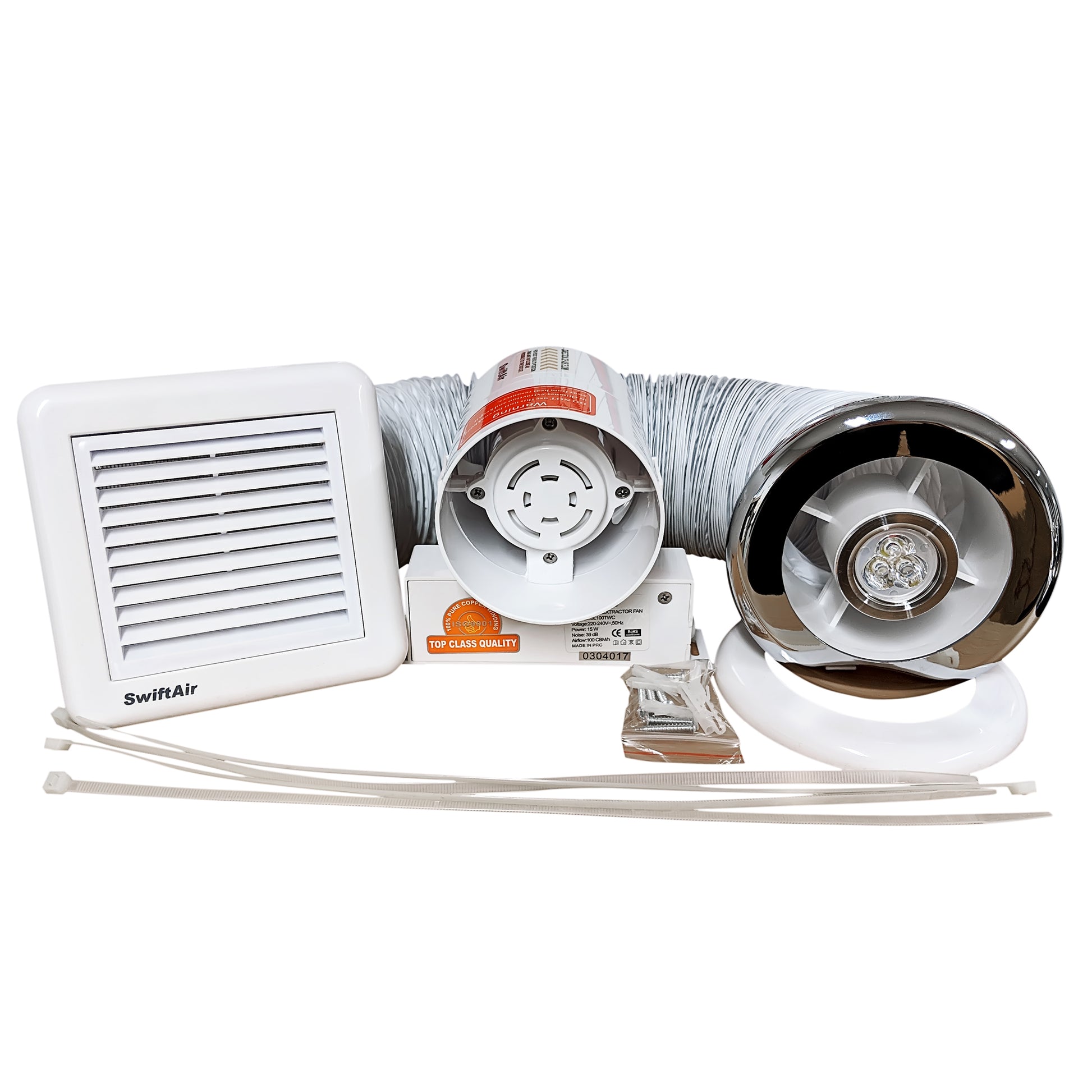

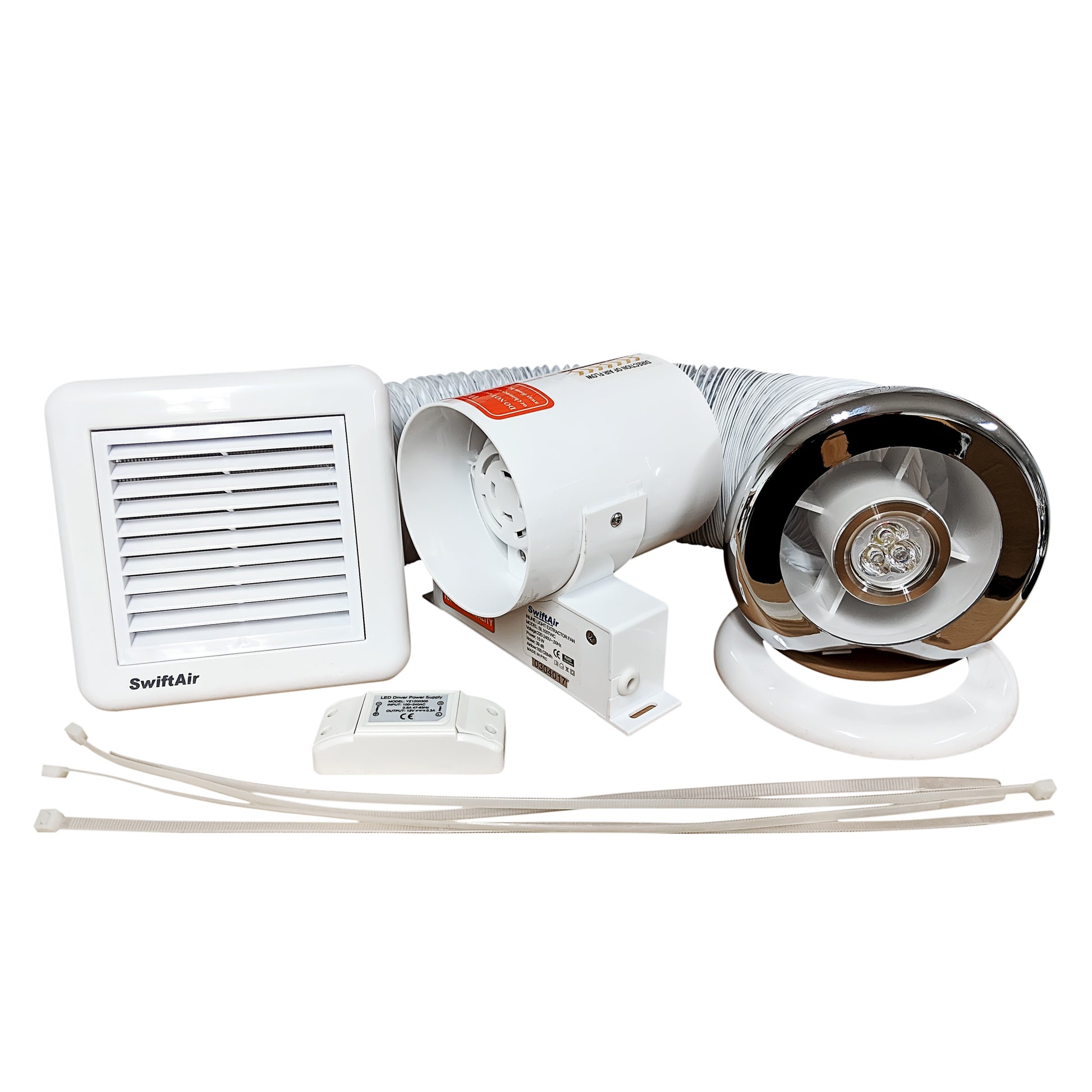

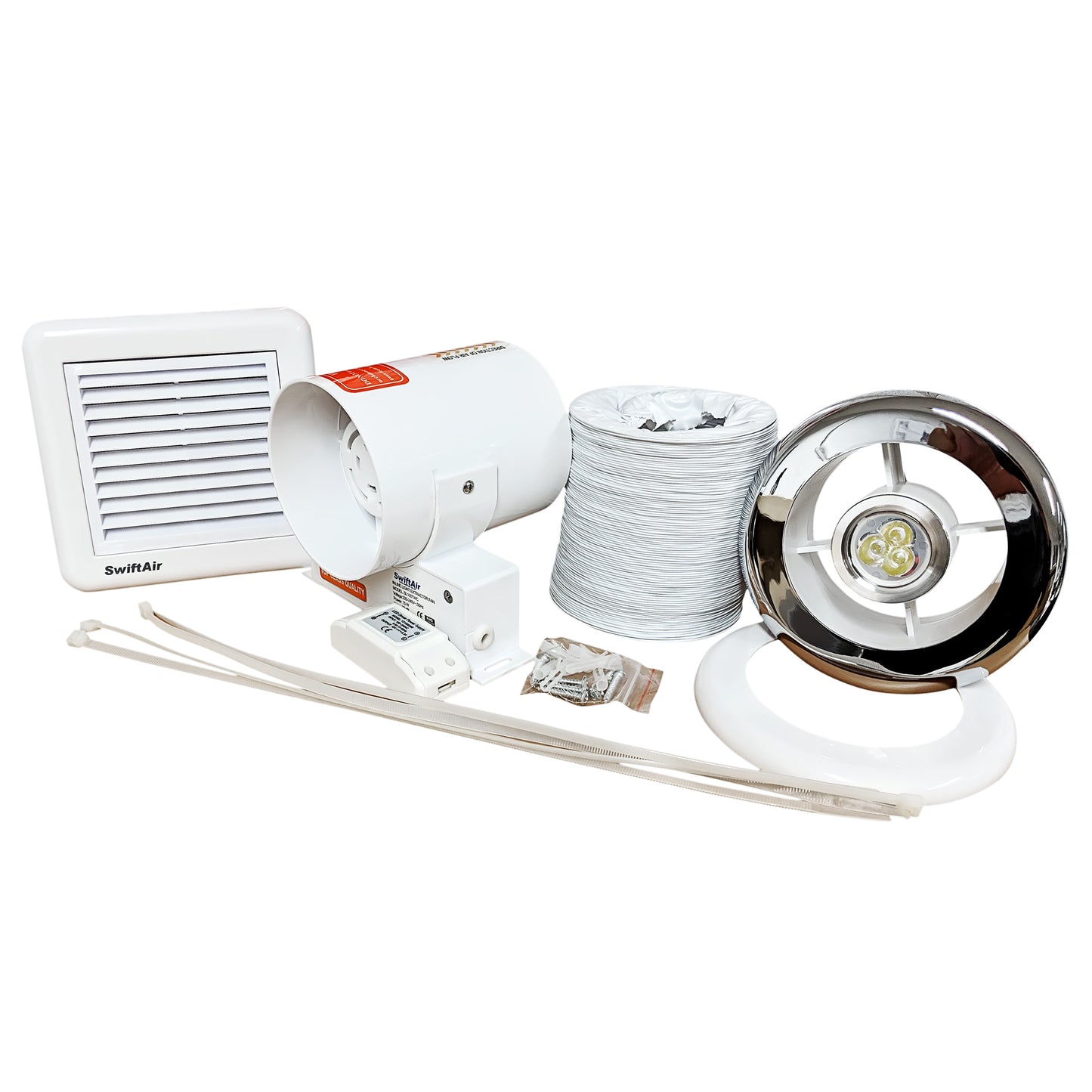

Available with timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting 3m, one internal Grille and one external white wall grille, fixing screws, plugs and straps to secure the duct and the grilles.

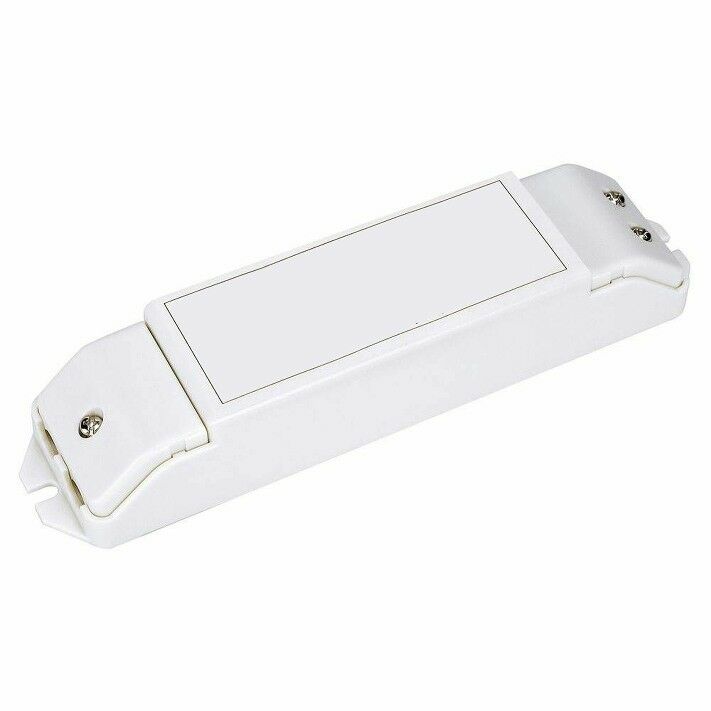

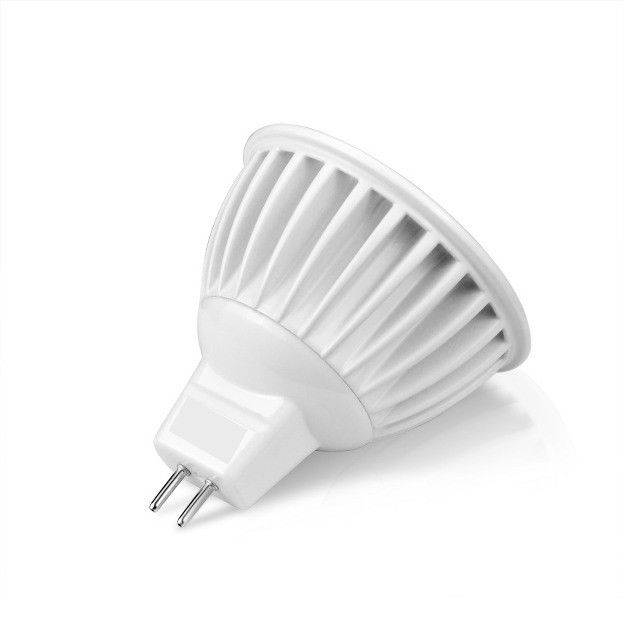

The internal light grille comes with a white and chrome bezel that is easily changeable by twisting off. LED drive is also include to power the 3w LED

Timer Fans need a Live, Neutral and Switched live

Power is provided by a single phase motor long, maintenance-free life.

Please Note For Standard Model: If timer is not needed please link between Switched live and live with a small piece of wire or remove PCB.

Installation


The shower fan is easy to install in the average loft/ceiling as after the hole has been cut in the ceiling of the shower/room, all other work is continued outside the living area.

Electrical


220-240V - AC 50Hz.
Single phase consuming 15w

Technical Specification

Maximum pressure: 20 p.a.
Fan speed: 2400 r.p.m.
Sound volume: 39.0 db(A).
Maximum operating temperature: 40°C

Delivery

Delivery:

Dispatch cut off point 12:00pm

(if you order after this time you item will be dispatched the following working day)

Free carriage only apply's to the below if we can use royal mail if the item is to large we will call to discuss as there is other options available.

Postcodes Highlands: FK17-22, G83, IV1-28, IV33-39, KW1-3, KW5-14, PA21-33, PA35-40, PH18-26, PH30-42, AB44-56, IV30-32Islands: HS1-9, IV40-51,IV55-56,KA27,KA28,KW15-17,PA20,PA34,PA41-48,PA60-78,PH42-44,ZE1-3, JE, GY, IM, TR21-25 (ALL ISLANDS APPLY) Northen Ireland: BT

View full details

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
M
M Bond
Bathroom LED light / extractor combo

I've purchased this type of unit in the past and found it to work well. Hence, when I needed another unit for an en suite refurb, I've have again purchased a similar kit. This time, it will be to provide secondary, independent lighting over the shower cubicle, as well as extraction.
The kit comes with most of the necessary components supplied. However, there's no anti backdraught flap / valve (which is the reason for 4 stars). That's a fair enough omission as one is not always required. However, in my case. I'm venting through the roof and need something to prevent a cold draught blowing straight through into my otherwise nice warm facility.
I have yet to fit this kit (builder delays!) so cannot comment on the noise level or fan extraction efficiency of this particular unit but if it works as well as the other one I have fitted elsewhere, it should be fine.
I have got the version that allows the fan to be wired up for overrun and the time setting is adjustable (or can be disabled). For the price paid for this unit, it's a reasonable buy, with the only additional cost being for a suitable "non return valve".
The previous one I bought was fitted in a guest area and has had only periodic usage. Hopefully, this new unit will have a reasonable lifecycle as it will be in everyday use. Time will tell.

I
Ian Crombie
Fan bulb

Excellent service

C
Chris Yale
Fans4Less

Received a good service from Fans4Less for SL100TWC Bathroom Shower Extractor Light Fan Kit 100mm. The original fan stopped working so this is a direct replacement. Easy to do.

G
Glyn Watts
Excellent extractor fan

Fan kit is very cheap but good quality! Easy to fit and customer is very happy!
