CFLO125 Heat Recovery Ventilation Condensation 5,6, 7 or 8 Rooms Complete Kit

CFLO125 Heat Recovery Ventilation Condensation 5,6, 7 or 8 Rooms Complete Kit
Regular price £473.00

Please select what you require above

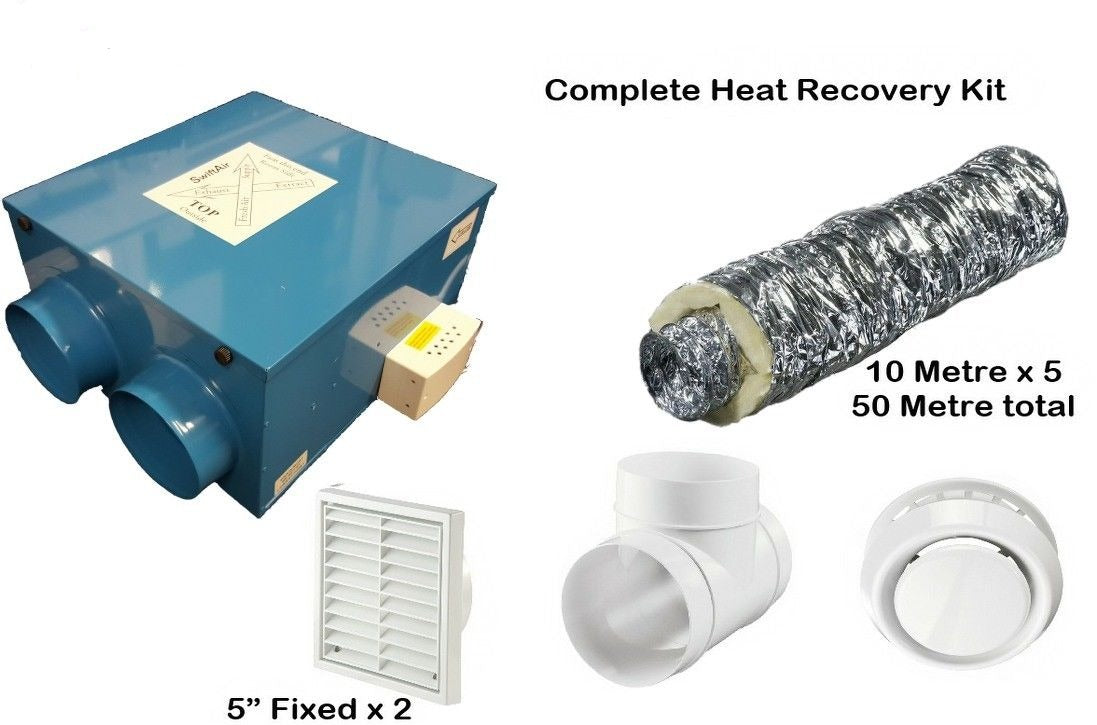

In this kit you will receive the following:

CFLO125 unit x 1

External grilles x 2

Tee pieces to match selection

Insulated ducting x 5 (50m Total 5")

Internal grilles to match the selection

5 room kit - 5 internal Grille

6 room kit - 6 internal Grilles

7 room kit - 7 internal grilles

8 room kit - 8 internal grilles

Alu Tape x 1

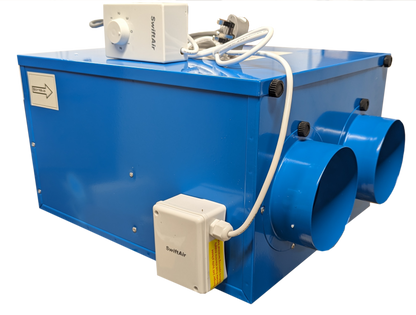

Wall In line Void/Loft Mounted Heat Recovery Unit Only

Unit label airflow is incorrect unit does 200m3/hr on full speed

Please note all airflows are at free air (No pressure) & Without filters.

Filters can reduce total performance by 50m3/hr

Features

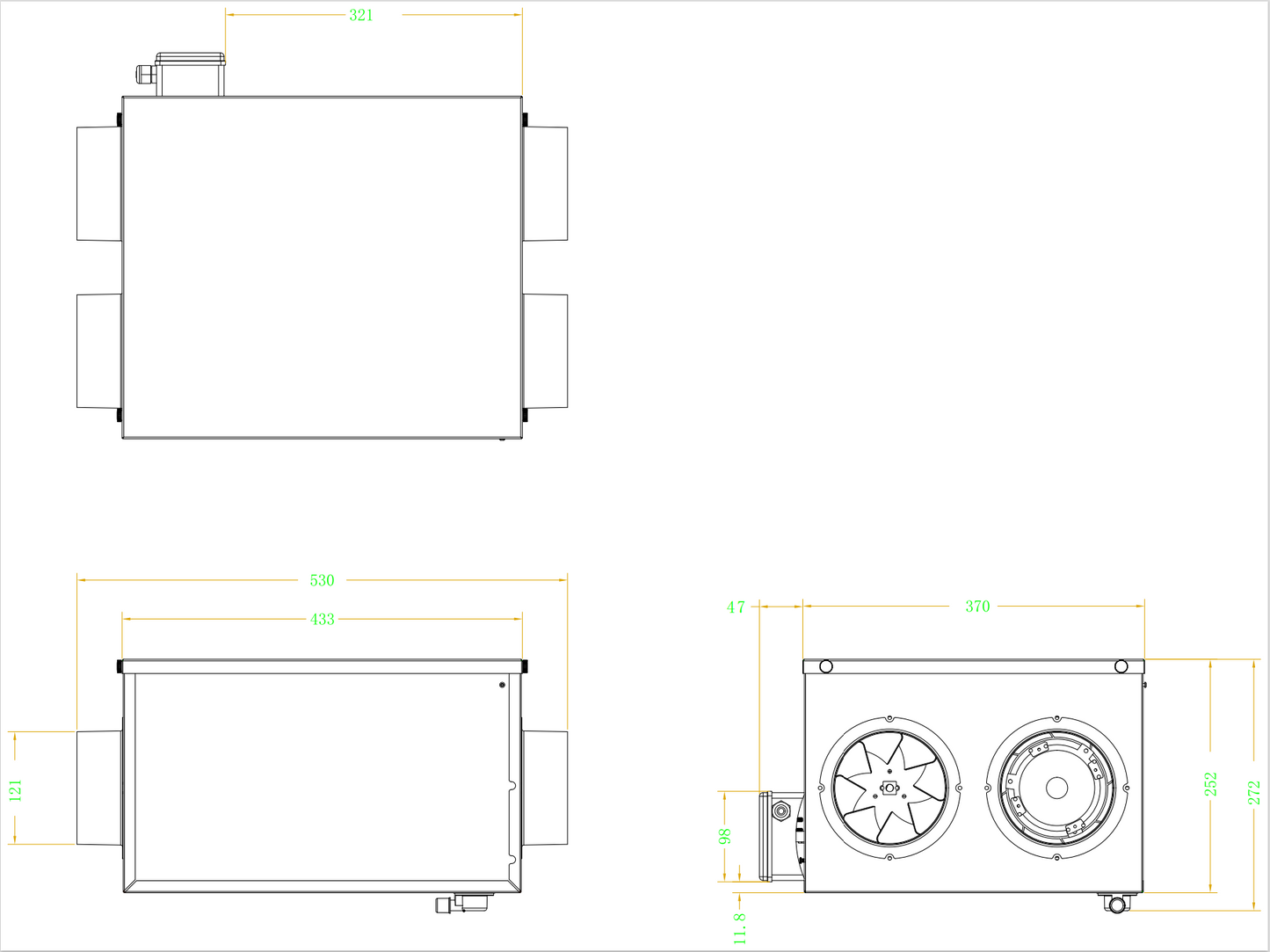

W415 x H255 x L450



High Speed 200m3/hr

Low speed 130m3/hr





Without Filters
speed 1 2 3
m³/h 130 150 200
W 40 45 66
rpm 1874 2194 2610
With Filters
speed 1 2 3
m³/h 110 130 170
W 39 45.5 66
rpm 1874 2194 2610



Designed to run continuously and provide adequate ventilation for a bathroom, en suite, shower room, wet room etc.

Will provide up to 75% heat recovery

(As air is extracted the unit will recover up to 75% of the heat and add it to clean fresh air, and pump it back into your house.)

5" 125mm Spigots on unit

Eliminate mould and control condensation

Loft/void space mounting.

Condensation Drain fitted to bottom of Unit



Extract Rates needed when using continuous Ventilation (boost)

Kitchen - 13 l/s
Utility - 8 l/s
Bathroom - 8 l/s
Sanitary Accommodation - 6l/s

In stock Sold out Sold out (Backorder available)

Please select what you require above

In this kit you will receive the following:

CFLO125 unit x 1

External grilles x 2

Tee pieces to match selection

Insulated ducting x 5 (50m Total 5")

Internal grilles to match the selection

5 room kit - 5 internal Grille

6 room kit - 6 internal Grilles

7 room kit - 7 internal grilles

8 room kit - 8 internal grilles

Alu Tape x 1


Wall In line Void/Loft Mounted Heat Recovery Unit Only

Unit label airflow is incorrect unit does 200m3/hr on full speed

Please note all airflows are at free air (No pressure) & Without filters.

Filters can reduce total performance by 50m3/hr

Features

W415 x H255 x L450



High Speed 200m3/hr

Low speed 130m3/hr





Without Filters
speed 1 2 3
m³/h 130 150 200
W 40 45 66
rpm 1874 2194 2610
With Filters
speed 1 2 3
m³/h 110 130 170
W 39 45.5 66
rpm 1874 2194 2610



Designed to run continuously and provide adequate ventilation for a bathroom, en suite, shower room, wet room etc.

Will provide up to 75% heat recovery

(As air is extracted the unit will recover up to 75% of the heat and add it to clean fresh air, and pump it back into your house.)

5" 125mm Spigots on unit

Eliminate mould and control condensation

Loft/void space mounting.

Condensation Drain fitted to bottom of Unit



Extract Rates needed when using continuous Ventilation (boost)

Kitchen - 13 l/s
Utility - 8 l/s
Bathroom - 8 l/s
Sanitary Accommodation - 6l/s
