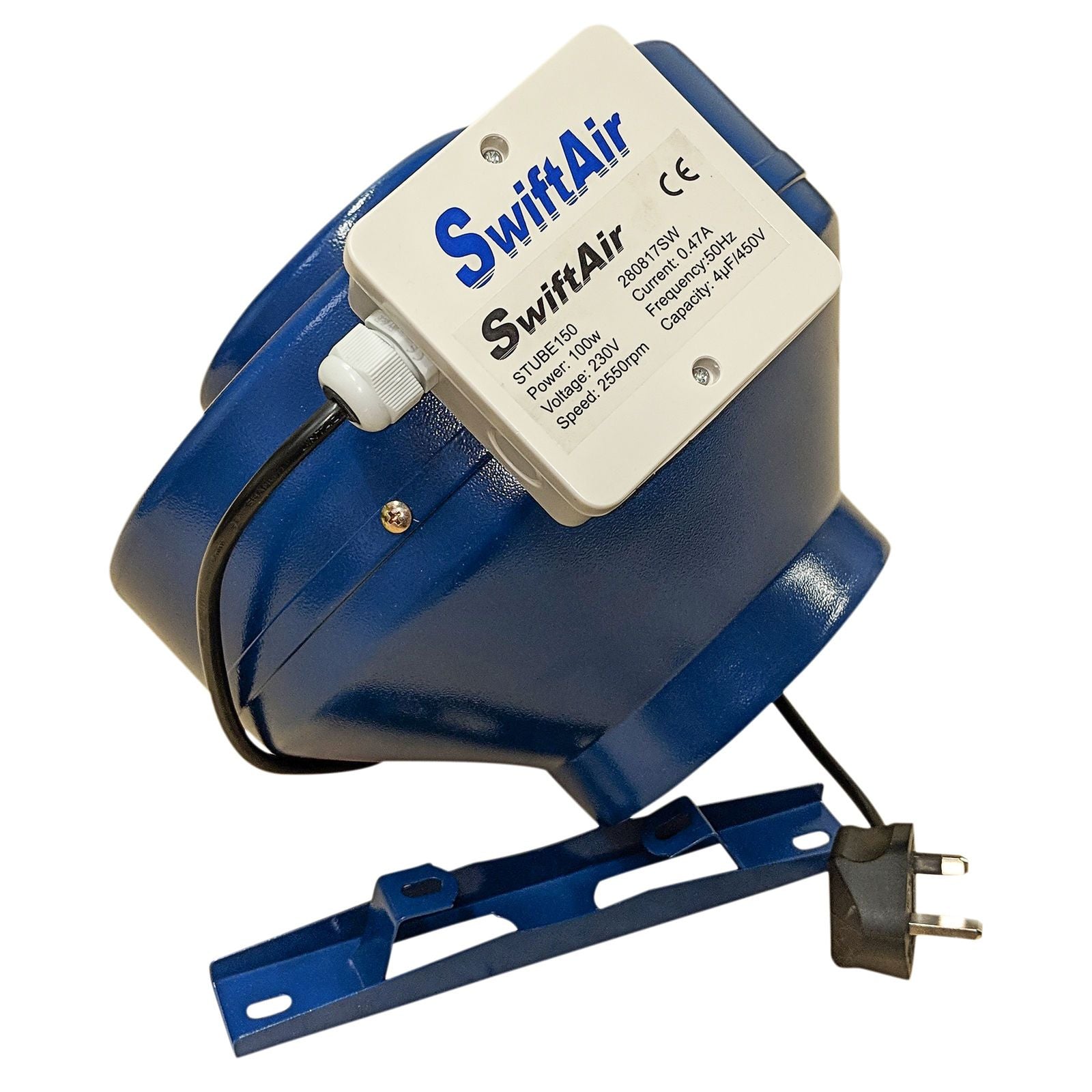

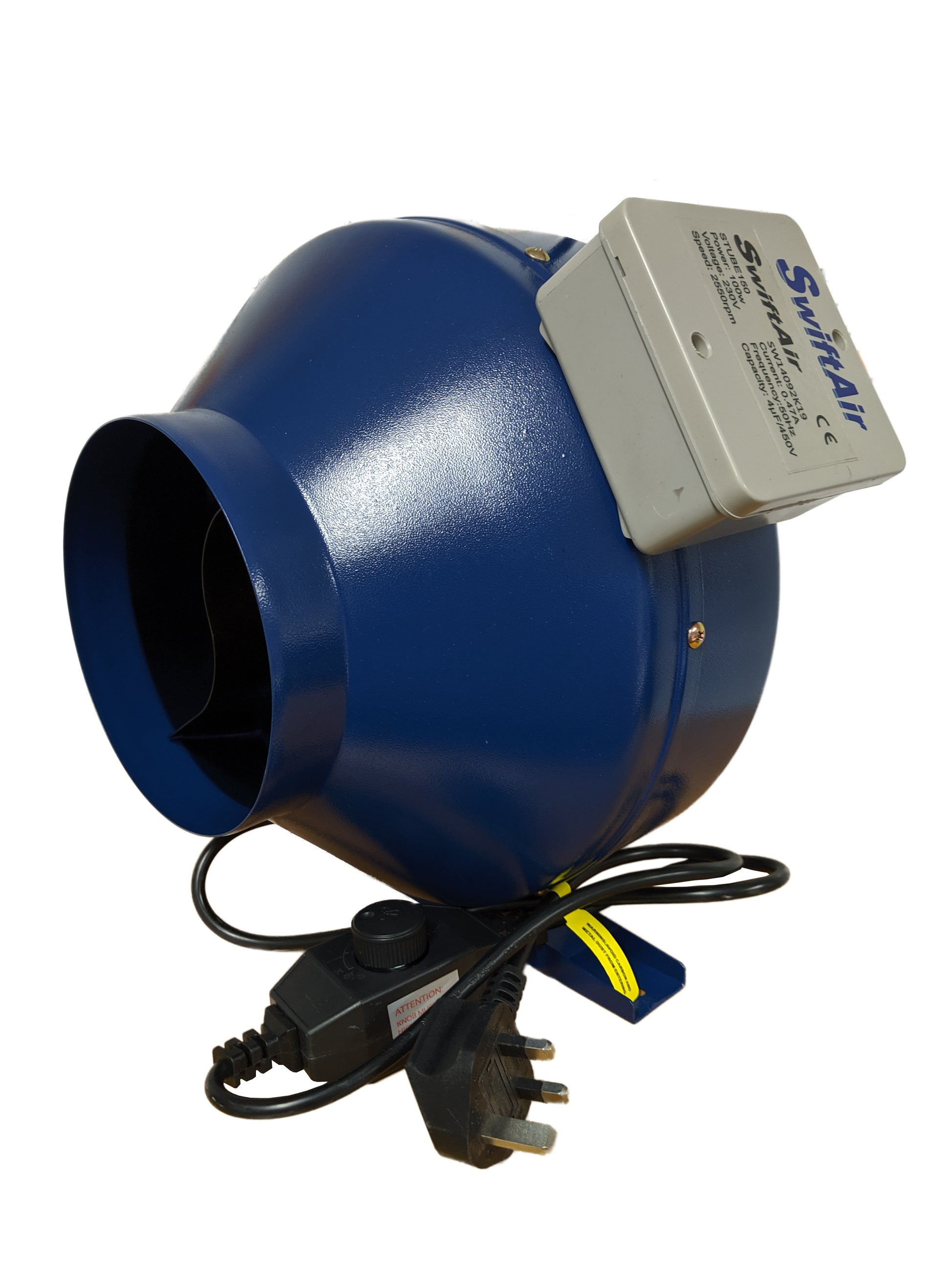

STUBE Inline Duct Centrifugal Fan upto 1800m3/h

STUBE Inline Duct Centrifugal Fan upto 1800m3/h
Regular price £34.99
4” 100mm, 5” 125mm 6” 150mm 8" 200mm, 10" 250mm & 12" 315mm


STUBE fans are applied for supply and exhaust ventilation systems of commercial, office and other premises.

Compatible with Ø 100, 125, 150, 200, 250, 315mm round air ducts.

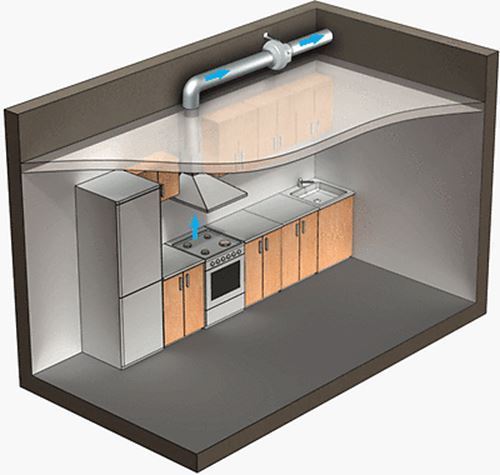

These fans have a metal casing, Because of the casing they are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.


The impeller with backward curved blades is powered by a single-phase asynchronous AC motor with external rotor including the following features:
A dynamic balanced impeller with backward curved blades balanced in two planes.
Overheating protection with automatic restart.


Maintenance-free ball-bearings used with motors and designed for at least 40 000 hours operation.


Motor protection rating IPX4


Installation to the wall or ceiling can be performed by means of mounting brackets (included in the delivery).



The fan can be mounted at any angle.
Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box



(Wire and plug supplied plug straight in and turn on)


If you do not wish to use the plug please wire directly into terminal


Airflow
STUBE100 - 300 m3/h
STUBE125 - 400 m3/h
STUBE150 - 700 m3/h
STUBE200 - 980 m3/h
STUBE250 - 1200 m3/h
 STUBE315 - 1800 m3/hr

Power W
68w STUBE100
70w STUBE125
125w STUBE150
160w STUBE200
165w STUBE250
 165w STUBE315

Noise Level

NOISE LEVEL 35 dBA @ 3m - STUBE100
NOISE LEVEL 40 dBA @ 3m - STUBE125
NOISE LEVEL 42 dBA @ 3m - STUBE150
NOISE LEVEL 44 dBA @ 3m - STUBE200
NOISE LEVEL 46 dBA @ 3m - STUBE250

NOISE LEVEL 66 dBA @ 3m - STUBE315
