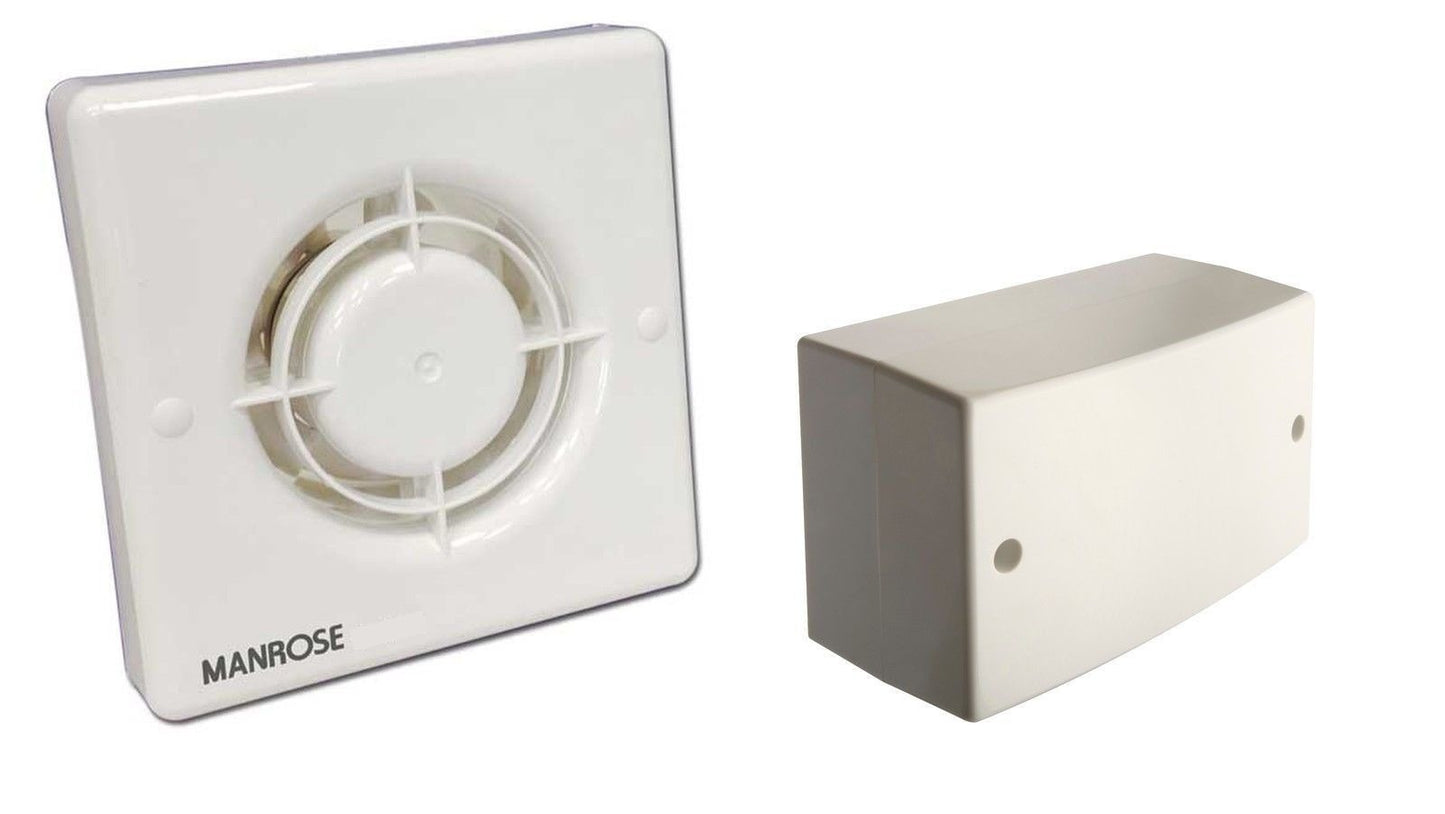

Manrose XF100HTLVT Humidistat ZONE 1/2

Manrose XF100HTLVT Humidistat  ZONE 1/2
Regular price £130.00
These can be ordred when out of stock
(there may be a delay of upto 7 days depending on delivery times from Manrose)

XF100HTLVT - (Transformer included)

Humidistat plus run on timer model

This can be mounted in Zones 1 & 2

Manrose XF100LV White Wall / Ceiling SELV Low Voltage Extractor Fan -

Designed for wall or ceiling mounting and suitable for mounting within the splash area of a shower or bath (where current regulations prevent the use of conventional fans).

The transformer and switching mechanism is mounted remotely either in the roof space or high on the ceiling next to the pullcord switch.

The extract rate of the 100mm (4) model is 85m3/hr, 23 litres per second.

The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.

Designed to comply with the 2006 Building Regulations on Ventilation (F1), rated to IP44.

Installation

Designed for wall or ceiling mounting (pullcord version wall mounting only) through 100mm (4) diameter flexible or rigid pipes or low profile, flat channel ductiong systems.

Electrical

12 volts AC - 50Hz
Single phase consuming 20 watts. Supplied by a remote safety isolating transformer.






In stock Sold out Sold out (Backorder available)

These can be ordred when out of stock
(there may be a delay of upto 7 days depending on delivery times from Manrose)

XF100HTLVT - (Transformer included)

Humidistat plus run on timer model

This can be mounted in Zones 1 & 2

Manrose XF100LV White Wall / Ceiling SELV Low Voltage Extractor Fan -

Designed for wall or ceiling mounting and suitable for mounting within the splash area of a shower or bath (where current regulations prevent the use of conventional fans).

The transformer and switching mechanism is mounted remotely either in the roof space or high on the ceiling next to the pullcord switch.

The extract rate of the 100mm (4) model is 85m3/hr, 23 litres per second.

The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.

Designed to comply with the 2006 Building Regulations on Ventilation (F1), rated to IP44.

Installation

Designed for wall or ceiling mounting (pullcord version wall mounting only) through 100mm (4) diameter flexible or rigid pipes or low profile, flat channel ductiong systems.

Electrical

12 volts AC - 50Hz
Single phase consuming 20 watts. Supplied by a remote safety isolating transformer.
