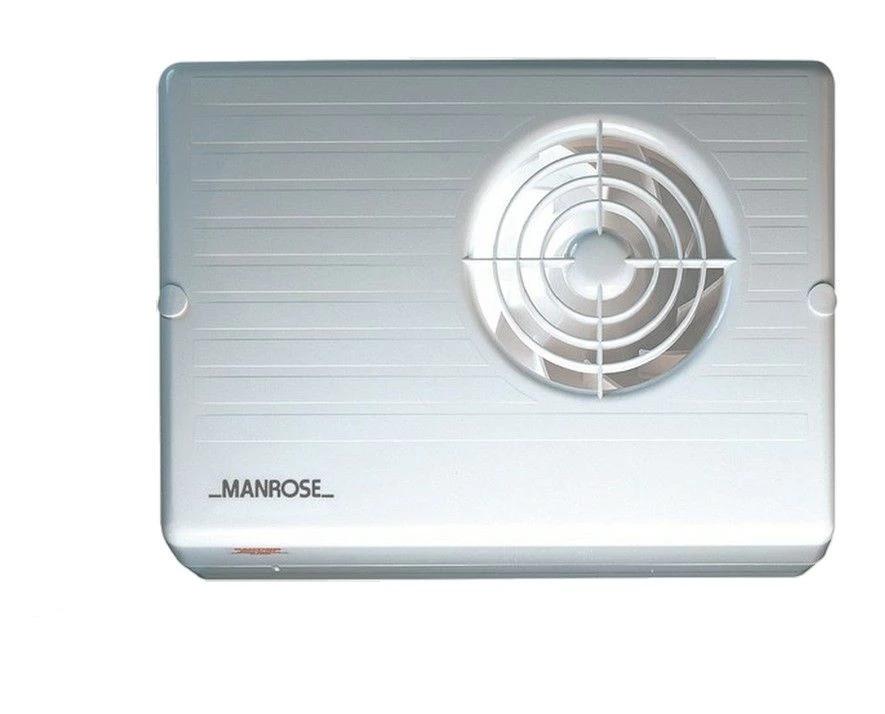

Manrose CF200 Extractor Fan

Manrose CF200 4" 100mm Std Timer Pullcord Humidity Wall Ceiling Bathroom Fan
Regular price £59.00
Manrose CF200 Centrifugal Fan Range Overview

The CF200 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations

Construction

The CF200 fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and appearance. Fitted with a powerful backward curved centrifugal impeller. A spring operated non return flap is built into the discharge spigot to prevent backdraughts.

Electrical

220-240V ~ A.C. 50Hz ns . Single phase consuming 45 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should not be accessible to a person using either the shower or the bath and mounted a minimum of 1.8 metres from the floor.

Motor

Single phase induction motors with pre-oiled bearings fitted for a long maintenance free life and protected by an auto-reset thermal cut-out.

Installation

All models are designed to be mounted on walls or ceilings and discharged through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems 100mm or 125mm ranges.

Performance

110m³hr, 31 litres per second.

Additional Data

Maximum pressure: 120 p.a. Fan speed: 1400 r.p.m. Sound volume: 45.0 dB(A)
In stock Sold out Sold out (Backorder available)

Manrose CF200 Centrifugal Fan Range Overview

The CF200 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations

Construction

The CF200 fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and appearance. Fitted with a powerful backward curved centrifugal impeller. A spring operated non return flap is built into the discharge spigot to prevent backdraughts.

Electrical

220-240V ~ A.C. 50Hz ns . Single phase consuming 45 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan should not be accessible to a person using either the shower or the bath and mounted a minimum of 1.8 metres from the floor.

Motor

Single phase induction motors with pre-oiled bearings fitted for a long maintenance free life and protected by an auto-reset thermal cut-out.

Installation

All models are designed to be mounted on walls or ceilings and discharged through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems 100mm or 125mm ranges.

Performance

110m³hr, 31 litres per second.

Additional Data

Maximum pressure: 120 p.a. Fan speed: 1400 r.p.m. Sound volume: 45.0 dB(A)
