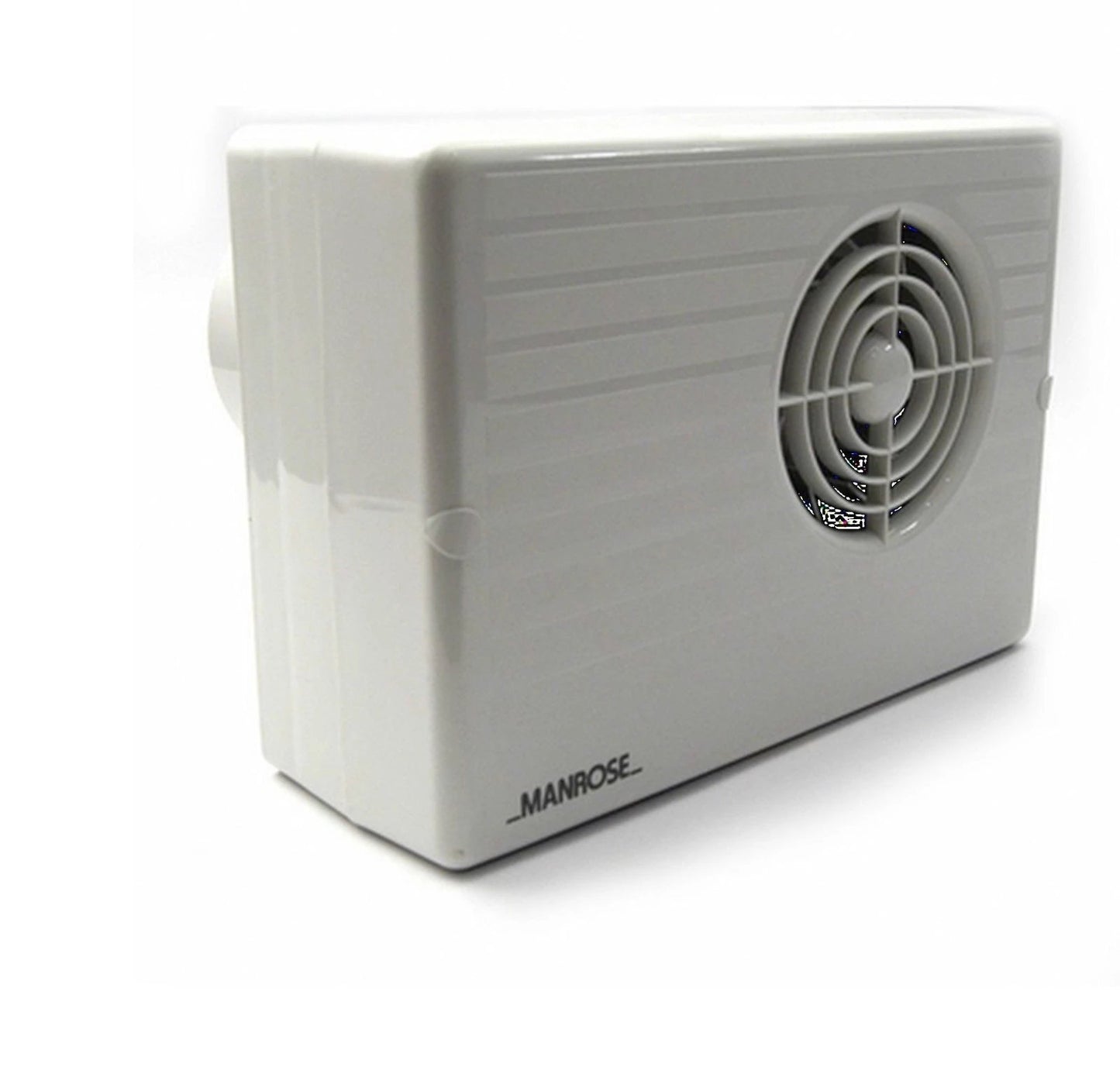

Manrose CF200LV Centrifugal Extractor Fan

MANROSE CF200LV CENTRIFUGAL EXTRACTOR FAN BATHROOM SHOWER 12V LOW VOLTAGE
Regular price £59.00

Manrose CF200LV (12v Fan- Transformer not included)

Manrose 4 inch 12v Centrifugal Fan
Specification
Air Extraction : 110m3/hr
Air Extraction L/s : 31 L/s
Noise : 45dB(A)

Manrose CF200 Centrifugal Fan Range Overview

The CF200 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations

Construction

The CF200 fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and appearance. Fitted with a powerful backward curved centrifugal impeller. A spring operated non return flap is built into the discharge spigot to prevent backdraughts.

Motor

Single phase induction motors with pre-oiled bearings fitted for a long maintenance free life and protected by an auto-reset thermal cut-out.

Installation

All models are designed to be mounted on walls or ceilings and discharged through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems 100mm or 125mm ranges.

Performance

110m³hr, 31 litres per second.

Additional Data

Maximum pressure: 120 p.a. Fan speed: 1400 r.p.m. Sound volume: 45.0 dB(A)


In stock Sold out Sold out (Backorder available)

Manrose CF200LV (12v Fan- Transformer not included)

Manrose 4 inch 12v Centrifugal Fan
Specification
Air Extraction : 110m3/hr
Air Extraction L/s : 31 L/s
Noise : 45dB(A)

Manrose CF200 Centrifugal Fan Range Overview

The CF200 range incorporates the latest technology and design in a powerful but very quiet centrifugal fan. This new range is fitted with a backward curved centrifugal impeller for a large airflow against the high pressures caused by longer lengths of ducting and resistance by grilles. Ideally suited for common or flat duct installations

Construction

The CF200 fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and appearance. Fitted with a powerful backward curved centrifugal impeller. A spring operated non return flap is built into the discharge spigot to prevent backdraughts.

Motor

Single phase induction motors with pre-oiled bearings fitted for a long maintenance free life and protected by an auto-reset thermal cut-out.

Installation

All models are designed to be mounted on walls or ceilings and discharged through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems 100mm or 125mm ranges.

Performance

110m³hr, 31 litres per second.

Additional Data

Maximum pressure: 120 p.a. Fan speed: 1400 r.p.m. Sound volume: 45.0 dB(A)
