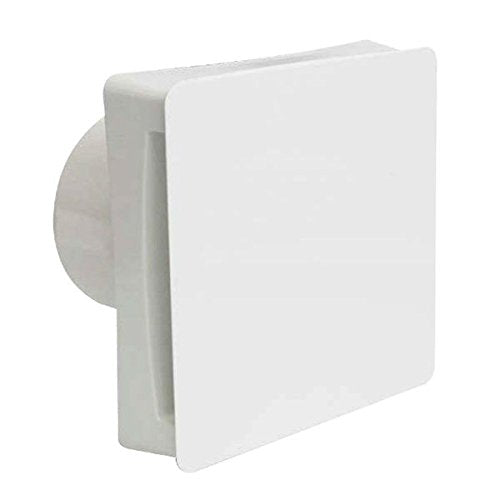

Manrose CQF100 Std Timer Humidity Bathroom Shower Extractor Fan 4" Quiet Fan

Manrose CQF100 Std Timer Humidity Bathroom Shower Extractor Fan 4" Quiet Fan
Regular price £39.99
Manrose CQF100 Std Timer Humidity Bathroom Shower Extractor Fan 4" Quiet Fan

Manrose CQF100 Std Timer Humidity Bathroom Shower Extractor Fan 4" Quiet Fan

Manrose CQF100T / CQF100S / CQF100H (ALL AVAILABLE)

Manrose 4 Inch Bathroom Extractor Fan with and without Timer also Pullcord and Humidistat model available.

COMPLIES WITH BOTH PART F & L

The Manrose quiet fan is the latest in domestic ventilation to incorporate a high extraction whilst producing an incredibly quiet running volume.

Designed for wall & ceiling mounting, this comprehensive range is ideal for bathrooms and toilets.

The unit also comes complete with a performance enhancing tuning vane system located in the spigot to improve performance by maintaining a high output.

High quality ball bearing long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years

Manufactured using high ABS thermoplastics for strength and durability

Decibel level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4" (100mm) domestic fans

An impressive extraction rate of 75m³/hr, 21 litres per second

Low energy motor with a maximum consumption of 4.8 watts

The most environmentally friendly fan in the Manrose range with an SFP of 0.24W/L/S

Complete with integral backdraught shutters

Complies with both Part F & L

Specification:
Air Extraction m³/hr : 75m³/hr
Air Extraction L/s : 21 L/s
Noise : 27dB(A)
Watts : 4.8W
Speed : 2300RPM

Manrose CQF100 Extractor Fan Range Overview

The Manrose range of 100mm (4") Bathroom/ Toilet Fans incorporates the latest technology and design and offers the most comprehensive range with the widest choice of options and variations.

Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall or ceiling mounted.

There are several options available; Standard model for remote switching, integral Pullcord units, and Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops. The Passive Infra-Red model is sensitive to movement and will switch on the fan when someone enters a room and switch it off when the room is vacated.

Construction

These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.

Electrical

220-240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.

Motor

Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation

CQF100 Series designed to be mounted on walls or ceilings (Pullcord models wall mounting only) through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems.

Performance

The extract rate of all models is 85m³hr, 23 litres per second.

Additional Data

Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.

Sound volume: 41.0 dB(A) Maximum operating temperature 40° C.
