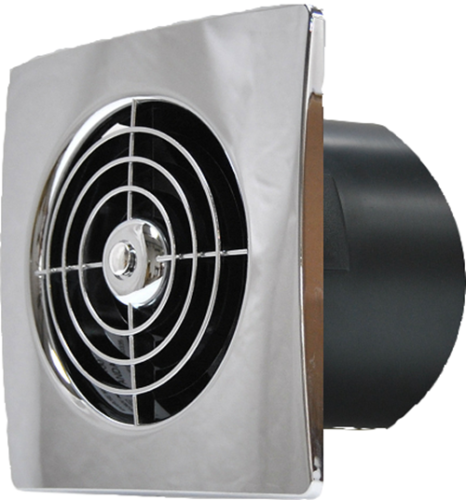

Manrose LP100SS LP100ST Low Profile Extractor Fan

Manrose LP100SS LP100ST Low Profile Extractor Fan
Regular price £18.00
These can be ordred when out of stock
(there may be a delay of upto 7 days depending on delivery times from Manrose)
This model is ideal for use in bathrooms and toilets please see model information below and select using the drop down menu above

*** Please select which model and colour using the drop down menu above ***

Model Available

Timer - adjustable from 1-20 minutes (Live, Neutral & Switch live Needed)

Standard - ON/Off (switch live and neutral need)

Colours

2 colours are available White and Chrome

Electrical

240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. It requires both a switched supply and a permanent live.

Motor

Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation

LO PROFILE series designed to be mounted on walls or ceilings, through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems.

Performance

The extract rate of all models is 85m³hr

Additional Data

Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.

Sound volume: 41.0 dB(A) Maximum operating temperature 40° C
Only 3 in stock

These can be ordred when out of stock
(there may be a delay of upto 7 days depending on delivery times from Manrose)
This model is ideal for use in bathrooms and toilets please see model information below and select using the drop down menu above

*** Please select which model and colour using the drop down menu above ***

Model Available

Timer - adjustable from 1-20 minutes (Live, Neutral & Switch live Needed)

Standard - ON/Off (switch live and neutral need)

Colours

2 colours are available White and Chrome

Electrical

240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. It requires both a switched supply and a permanent live.

Motor

Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation

LO PROFILE series designed to be mounted on walls or ceilings, through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems.

Performance

The extract rate of all models is 85m³hr

Additional Data

Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.

Sound volume: 41.0 dB(A) Maximum operating temperature 40° C
