Manrose Standard WF150A Extractor Fan

Manrose Standard On/Off 150mm 6" Window Extractor Fan + Internal Shutters WF150A
Regular price £51.00

MANROSE - WF150A (Standard Model On/Off) - 3 Year Warranty

- Automatic window fan Standard model

Designed for wall or ceiling mounting, the efficient and easy to install range of 150mm (6") fans.

This comprehensive range are suited for use in larger bathrooms, utility rooms, shops, offices,Kitchens and restaurants.

The 150mm (6") series has an impressive extract rate of 230m³/hr, 64 litres per second.

The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.

More information please click here: http://www.manrose.co.uk/specifications/6wallandwindow.pdf

Installation

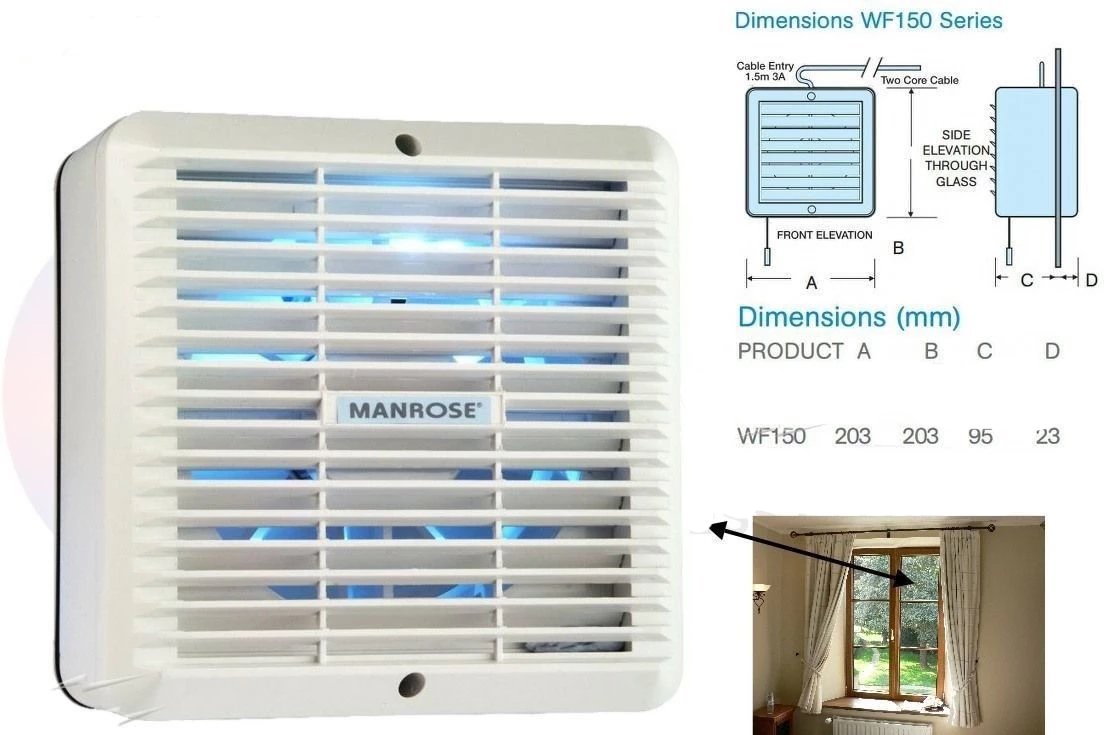

Designed for window mounting (bigger screws maybe need for different thickness's of glass)

Electrical

220-240V - AC 50Hz.
v Single phase consuming 25 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations

. A double pole (DP) isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

Technical Specification

• Maximum pressure: 50 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 40.0 db(A)



• Maximum operating temperature: 40°C

In stock Sold out Sold out (Backorder available)

MANROSE - WF150A (Standard Model On/Off) - 3 Year Warranty

- Automatic window fan Standard model

Designed for wall or ceiling mounting, the efficient and easy to install range of 150mm (6") fans.

This comprehensive range are suited for use in larger bathrooms, utility rooms, shops, offices,Kitchens and restaurants.

The 150mm (6") series has an impressive extract rate of 230m³/hr, 64 litres per second.

The units are all manufactured using high ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.

More information please click here: http://www.manrose.co.uk/specifications/6wallandwindow.pdf

Installation

Designed for window mounting (bigger screws maybe need for different thickness's of glass)

Electrical

220-240V - AC 50Hz.
v Single phase consuming 25 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations

. A double pole (DP) isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

Technical Specification

• Maximum pressure: 50 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 40.0 db(A)



• Maximum operating temperature: 40°C
