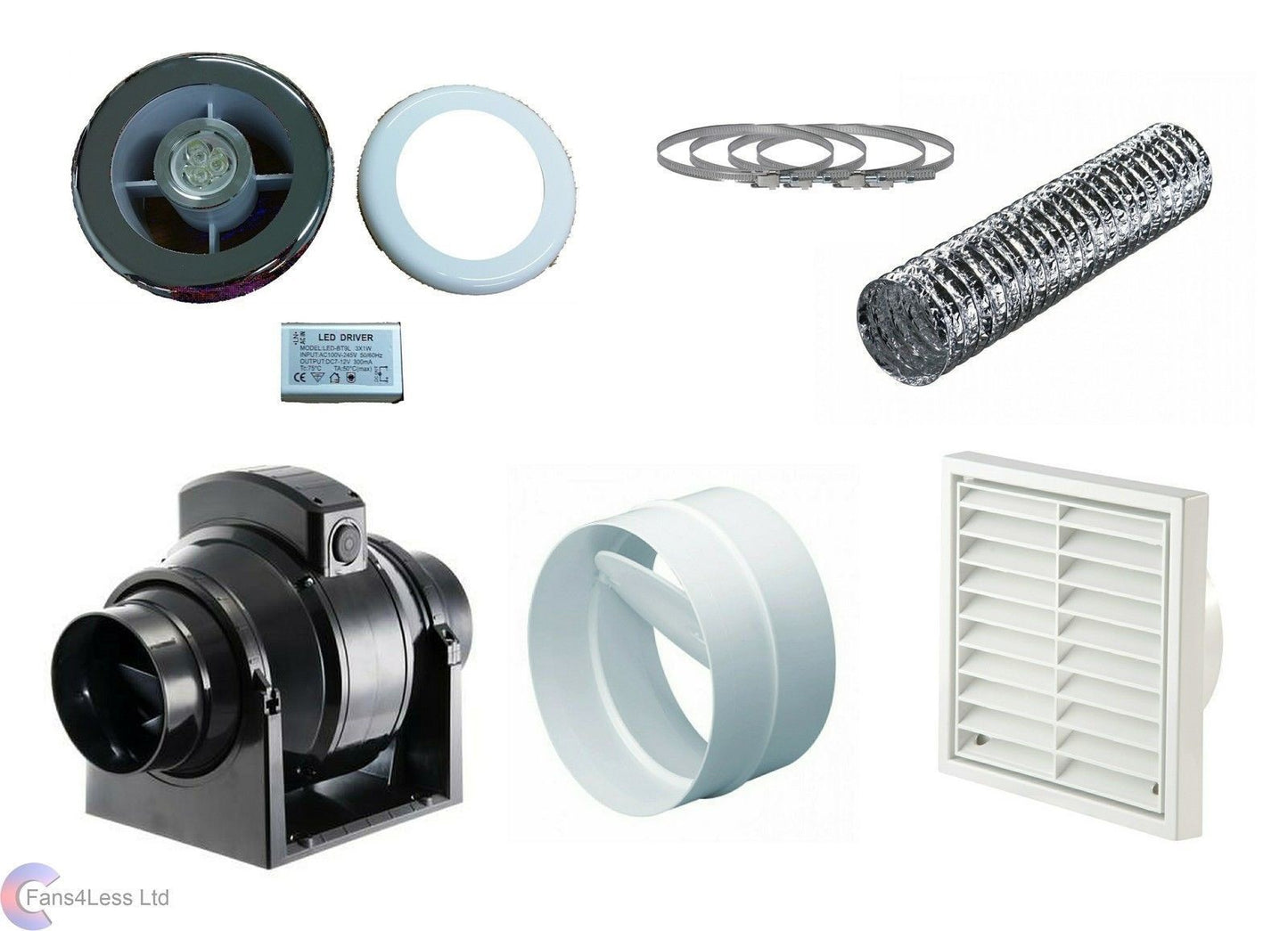

MF100S MF100T Mixedflow Back Draught Bathroom inline Fan Light Kit 4" 100mm



Standard Model On/Off (2 Speed)

Timer 1-20min (2 Speed)

****Please select type required from drop down menu****
Internal White/Chrome Light grille 3w LED
5m Alu Duct
Back Draught Shutter
Fixed White Grille
These powerful in-duct mounted mixed flow fans have been designed to produce higher working pressures for applications that require high air flows, with low relative noise.

Mixflo fans can be mounted in a variety of applications as shown and are suitable for use with either rigid or flexible ducting

• High quality ball bearing, long life motors, continuously rate and warranted for a minimum of 30,000 hours or 3 years.
• High air flows are achieved through flexible duct
• Compact overall dimensions
• 2 speed fan settings for 100mm/4
• Double Insulation – no earth required
• Fully Building Code compliant
• Fully BEAB approved rated to IPX4.
• Easy installation and maintenance with the fan assembly easily removed from rigid ducting installations using the specially designed construction

Technical specifications:

- Speed (RPM): High 2400, Low 1700
- Wattage: High 25, Low 20
- Maximum Airflow (m³/hr) : High 245, Low 180
- Maximum Airflow (LPS): High 68, Low 50
- Maximum Pressure (PA): High 200, Low 120
- Noise dB(A): High 24, Low 20

- Max Operating Temp ºC: 40
