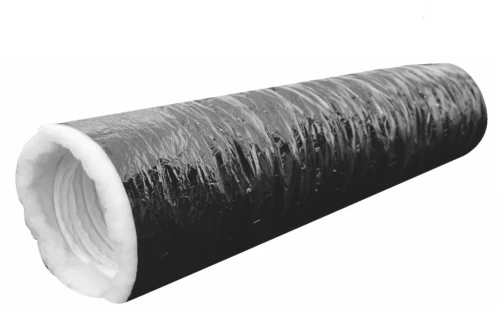

Phonic Phonitec Trap Acoustic Ducting 3m 6m 10m Ventilation Extraction

Phonic Phonitec Trap Acoustic Ducting 3m 6m 10m Ventilation Extraction
Regular price £18.99
The NON-WOVEN PMP BLACK consists of a Polypropylene fabric cloth inner duct, thermically and acoustically insulated with a Polypropylene insulation layer and provided with a black polyester outer jacket.  The inner duct is hydrophobic and Anti-Bacterial.

 APPLICATION:
Air-conditioning systems
Air supply systems
Preventing condensation in air ventilation systems
Decreasing of machine noises

SPECIFICATIONS  PRESSURE LOSS (STRAIGHT DUCT) Article code: SBIPMPB{Ø}NW
 Temperature range: -30 ⁰C to 140 ⁰C
 Operating pressure: up to +2500 Pa Operating air velocity: max. 25 m/s Min.
 bending radius: 0.54 x Ø + 25mm
Standard diameter range: 102 – 406 mm
Standard length: 3, 6 and 10 mtr
CONSTRUCTION
Inner duct: Non-woven Polypropylene fabric cloth
Insulation blanket PP: 25mm, 16kg/m³
Outer jacket: Poly laminate R-value glass wool: 0.55 m² K/W (ASTM C177-76)
Appearance: Black
The NON-WOVEN PMP BLACK fulfils all the requirements and are classified as specified within EN 13180: Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts.
  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •


The NON-WOVEN PMP BLACK consists of a Polypropylene fabric cloth inner duct, thermically and acoustically insulated with a Polypropylene insulation layer and provided with a black polyester outer jacket.  The inner duct is hydrophobic and Anti-Bacterial.

 APPLICATION:
Air-conditioning systems
Air supply systems
Preventing condensation in air ventilation systems
Decreasing of machine noises

SPECIFICATIONS  PRESSURE LOSS (STRAIGHT DUCT) Article code: SBIPMPB{Ø}NW
 Temperature range: -30 ⁰C to 140 ⁰C
 Operating pressure: up to +2500 Pa Operating air velocity: max. 25 m/s Min.
 bending radius: 0.54 x Ø + 25mm
Standard diameter range: 102 – 406 mm
Standard length: 3, 6 and 10 mtr
CONSTRUCTION
Inner duct: Non-woven Polypropylene fabric cloth
Insulation blanket PP: 25mm, 16kg/m³
Outer jacket: Poly laminate R-value glass wool: 0.55 m² K/W (ASTM C177-76)
Appearance: Black
The NON-WOVEN PMP BLACK fulfils all the requirements and are classified as specified within EN 13180: Ventilation for buildings – Ductwork - Dimensions and mechanical requirements for flexible ducts.
