Shower Fan Kit - 4"/100mm Manrose VSF100T Timer Extractor Fan CHROME GRILLE!

Shower Fan Kit - 4"/100mm Manrose VSF100T Timer Extractor Fan CHROME GRILLE!
Regular price £26.99

MANROSE - VSF100T (Timer Model) with CHROME GRILLE!

3 Year Warranty

- This Fan is suitable for mounting above a ceiling or can be used where longer duct runs are needed

- The fan is mounted in the duct

Manrose/ Intervent VSF100T (Timer Model) In-Line Tube Shower Fan Kit with PVC Ducting & Grille 100mm 240V

Designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely.

Powerful, yet extremely quiet in operation, the extract rate is 85m³/hr (23 ltr/sec).

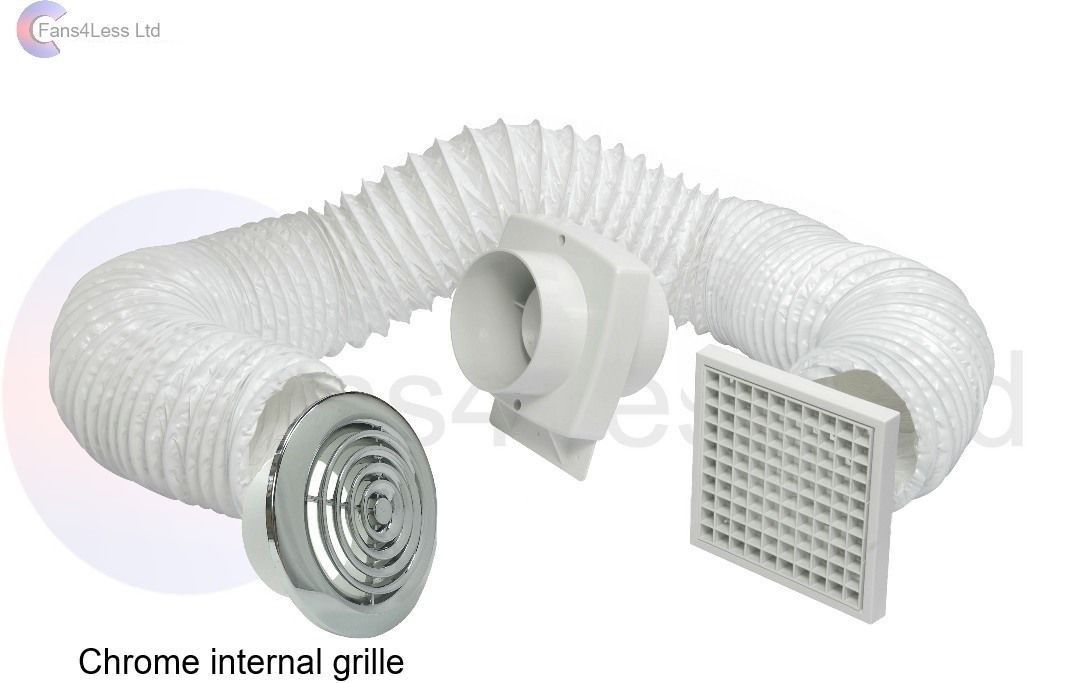

Available with or without a timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting, one internal (chrome) and one external wall grille, fixing screws, plugs and straps to secure the duct to the grilles.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Designed to comply with the 2006 Building Regulations on Ventilation (F1).

Installation

The shower fan is easy to install in the average loft/ceiling recess as after the hole has been cut in the ceiling of the shower/room, all other work is continued outside the living area.

Electrical

220-240V - AC 50Hz.
Single phase consuming 14 watts.

Technical Specification

• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 db(A).
• Maximum operating temperature: 40°C


  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •


MANROSE - VSF100T (Timer Model) with CHROME GRILLE!

3 Year Warranty

- This Fan is suitable for mounting above a ceiling or can be used where longer duct runs are needed

- The fan is mounted in the duct

Manrose/ Intervent VSF100T (Timer Model) In-Line Tube Shower Fan Kit with PVC Ducting & Grille 100mm 240V

Designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely.

Powerful, yet extremely quiet in operation, the extract rate is 85m³/hr (23 ltr/sec).

Available with or without a timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting, one internal (chrome) and one external wall grille, fixing screws, plugs and straps to secure the duct to the grilles.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Designed to comply with the 2006 Building Regulations on Ventilation (F1).

Installation

The shower fan is easy to install in the average loft/ceiling recess as after the hole has been cut in the ceiling of the shower/room, all other work is continued outside the living area.

Electrical

220-240V - AC 50Hz.
Single phase consuming 14 watts.

Technical Specification

• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 db(A).
• Maximum operating temperature: 40°C
