SMF 4 5 6" MixedFlow Inline Fan Complete Kit Back Draught Shutter Chrome Grille

SMF 4 5 6" MixedFlow Inline Fan Complete Kit Back Draught Shutter Chrome Grille
Regular price £67.99
Standard and Timer Models Available please select

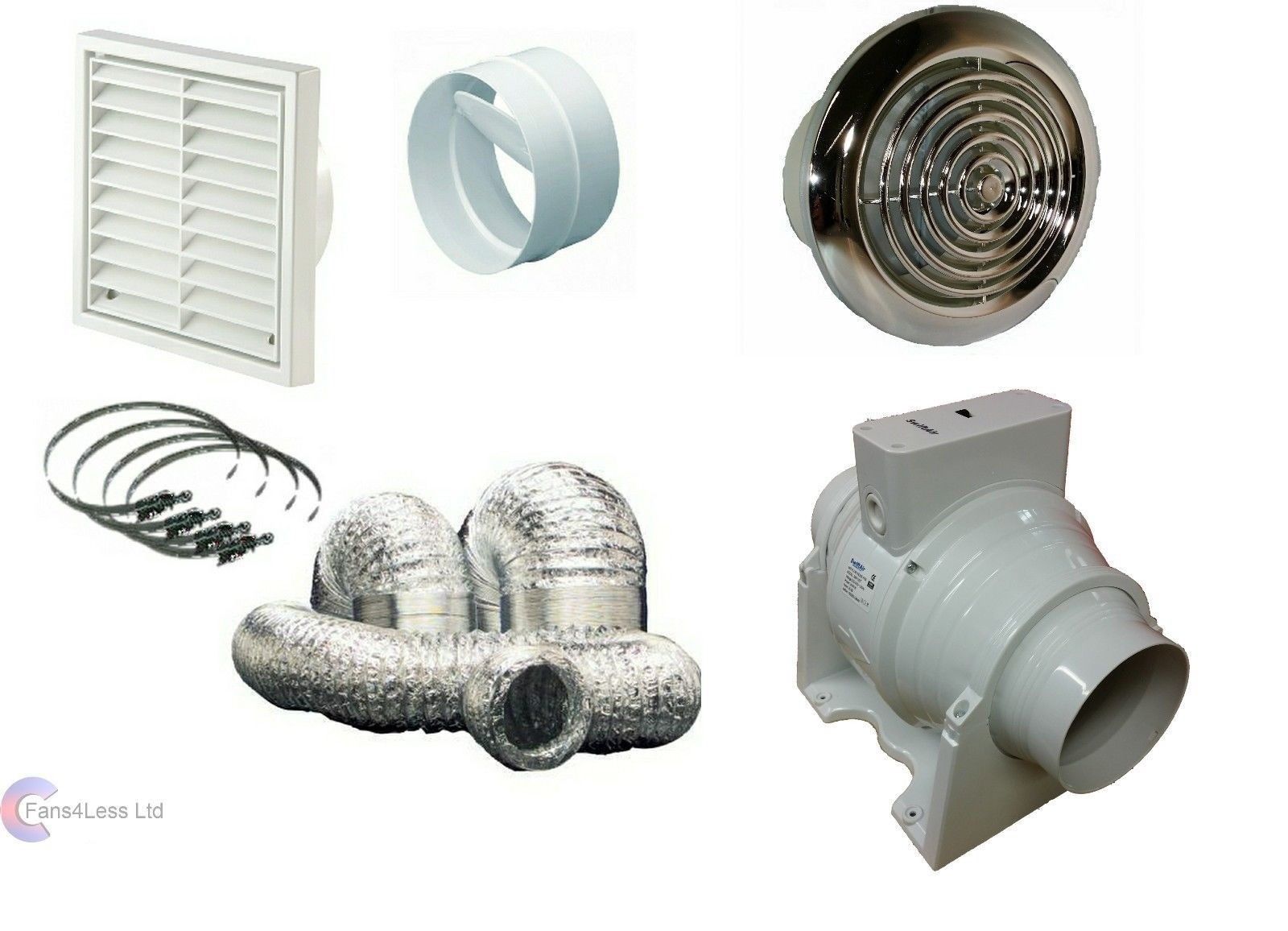

In this kit you will get the following: (if you select 4" you will get 4" grilles if you select 5" you will get 5" etc)
Internal Chrome grille
5m Alu Duct
Back Draught Shutter
Fixed White Grille
Clamps x 4
Timer Models Avialable please select above run on timer (Adjustable 1-15min)
Standard Model Comes with plug how ever this does not need to be used if not needed
SMF fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø 100, 125, 150mm round air ducts.
Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.
A dynamic balanced impeller
Overheating protection
Motor protection rating IP X4
Instalation to the wall or ceiling can be performed by means of mounting bracket (included). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box.
Airflow
SMF100 - 220 m3/h
SMF125 - 330 m3/h
SMF150 - 530 m3/h
Noise Level
NOISE LEVEL 35 dBA @ 3m - 100
NOISE LEVEL 37 dBA @ 3m - 125
NOISE LEVEL 44 dBA @ 3m - 150
In stock Sold out Sold out (Backorder available)

Standard and Timer Models Available please select
In this kit you will get the following: (if you select 4" you will get 4" grilles if you select 5" you will get 5" etc)
Internal Chrome grille
5m Alu Duct
Back Draught Shutter
Fixed White Grille
Clamps x 4
Timer Models Avialable please select above run on timer (Adjustable 1-15min)
Standard Model Comes with plug how ever this does not need to be used if not needed
SMF fans are applied for supply and exhaust ventilation systems of commercial, office and other premises. Compatible with Ø 100, 125, 150mm round air ducts.
Due to the corrosion-resistant durable plastic casing, these models are the perfect solution for the installation in exhaust ventilation systems in humid premises such as bathrooms, kitchens etc.
A dynamic balanced impeller
Overheating protection
Motor protection rating IP X4
Instalation to the wall or ceiling can be performed by means of mounting bracket (included). The fan can be mounted at any angle. Electric connection and installation shall be performed in compliance with the manual and the wiring diagram on the terminal box.
Airflow
SMF100 - 220 m3/h
SMF125 - 330 m3/h
SMF150 - 530 m3/h
Noise Level
NOISE LEVEL 35 dBA @ 3m - 100
NOISE LEVEL 37 dBA @ 3m - 125
NOISE LEVEL 44 dBA @ 3m - 150
Delivery:

Dispatch cut off point 12:00pm

(if you order after this time you item will be dispatched the following working day)

Free carriage only apply's to the below if we can use royal mail if the item is to large we will call to discuss as there is other options available.

Postcodes Highlands: FK17-22, G83, IV1-28, IV33-39, KW1-3, KW5-14, PA21-33, PA35-40, PH18-26, PH30-42, AB44-56, IV30-32
Islands: HS1-9, IV40-51,IV55-56,KA27,KA28,KW15-17,PA20,PA34,PA41-48,PA60-78,PH42-44,ZE1-3, JE, GY, IM, TR21-25 (ALL ISLANDS APPLY)
Northen Ireland: BT
