Swiftair Extractor Fan Automatic Shutter 4" 5" 6"

Swiftair Extractor Fan Automatic Shutter 4" 5" 6"
Regular price £17.50

A distinctive feature of the SAS fan is the automatic shutters (Please allow 40 secounds to open and fully close).

This design is necessary to combat reverse traction and is indispensable for rooms where regular, but not constant ventilation is needed.

SAS is also has other options: timer & humidity sensor.

This will help the unit with changes within the room and respond.

IP Rating: IP24

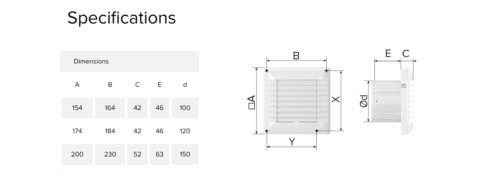

Types/Spigot Size

SAS100A - 100mm (4")
SAS125A - 120mm (5")
SAS150A - 150mm (6")

Models - Standard (S), Timer (T) & Humidistat (H)

Standard Model (S) - Turns on and off, Live and Neutral needed

Timer Model (T) - Turns on and when switched off will run on for the time set, Switched live, Permanent Neutral and Permanent Live needed

Humidity Model (H) - Turn on and off with Humidity Permanent live and Permanent Neutral needed **Turns on and off when switched if Switched Live wire is added**

Humidity can be wired to just work with humidity if needed


Wattage
100 - 11w
125 - 15w
150 - 29w



Air Flow (Free Air)
100 - 85 m3/hr
125 - 130 m3/hr
150 - 230 m3/hr



Sound Level dBA (3m)
100 - 39
125 - 42
150 - 46

A distinctive feature of the SAS fan is the automatic shutters (Please allow 40 secounds to open and fully close).

This design is necessary to combat reverse traction and is indispensable for rooms where regular, but not constant ventilation is needed.

SAS is also has other options: timer & humidity sensor.

This will help the unit with changes within the room and respond.

IP Rating: IP24



Types/Spigot Size

SAS100A - 100mm (4")
SAS125A - 120mm (5")
SAS150A - 150mm (6")

Models - Standard (S), Timer (T) & Humidistat (H)

Standard Model (S) - Turns on and off, Live and Neutral needed

Timer Model (T) - Turns on and when switched off will run on for the time set, Switched live, Permanent Neutral and Permanent Live needed

Humidity Model (H) - Turn on and off with Humidity Permanent live and Permanent Neutral needed **Turns on and off when switched if Switched Live wire is added**

Humidity can be wired to just work with humidity if needed


Wattage
100 - 11w
125 - 15w
150 - 29w



Air Flow (Free Air)
100 - 85 m3/hr
125 - 130 m3/hr
150 - 230 m3/hr



Sound Level dBA (3m)
100 - 39
125 - 42
150 - 46
