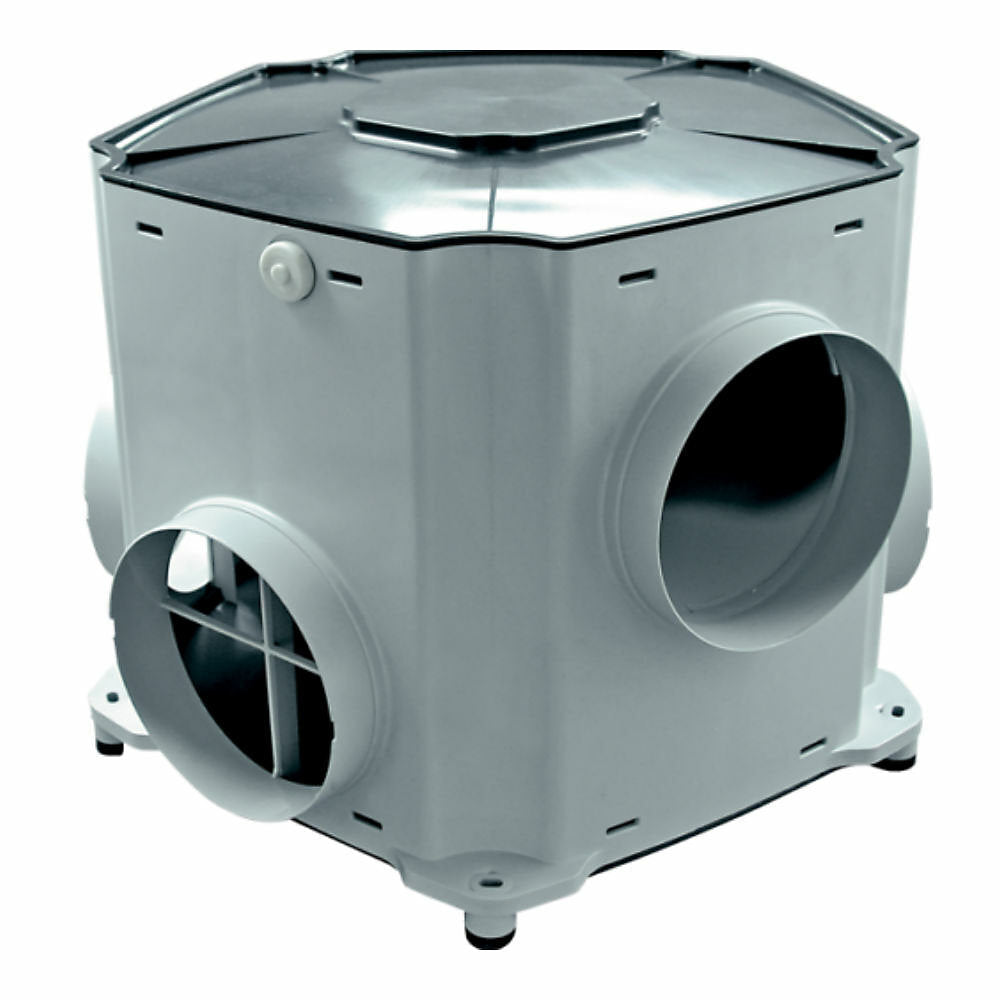

Vortice 12167 Vort Leto HCS Centralised Continuous Ventilation Unit (AirVac Replacement unit)

Delivery is 3 to 5 days depending on Supplier

Product information

Centralised Continuous Ventilation Unit

• Suitable for: Freestanding
• Ducting not included

Wiring instructions

Energy Sticker

Technical Data

Instruction Manual

Features and benefits

• Mains voltage 230V AC 50Hz. 3 speeds, selectable at installation
• Extraction rate 20 - 138.9 litres per second, 72 - 500 cubic metres per hour (min/max speeds)
• Power consumption 70 watts (max speed). Sound output 42.2dB(A) @ 3m (max speed)
• Class II - double insulated. Enclosure made of plastic material, colour grey, resistant to ageing
• 4 ports for connection to extractor ducts, nominal diameter 125 mm. 1 port for connection to exhaust duct, nominal diameter 125 mm
• 3 speed EC motor with shaft turning in ball bearings, coupled to a centrifugal impeller; electronic control provided by microprocessor
• 2 x closure plug for connection ports, diameter 125 mm
• Dimensions: 387mm wide x 377mm deep x 284mm high
