VSF100 Extractor Fan In-Line Tube Shower Fan Kit 4" Timer or Standard

VSF100 Extractor Fan In-Line Tube Shower Fan Kit 4" Timer or Standard
Regular price £18.99
Made by Manrose / Intervent label on Box
VSF100T (Timer)
VSF100S (Standard)
Please selct which fan kit you need above
3 Year Warranty
- This Fan is suitable for mounting above a ceiling or use where longer duct runs are needed
- The fan is mounted in the duct
Manrose/ Intervent VSF100  In-Line Tube Shower Fan Kit with PVC Ducting & Grille 100mm 240V
Designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely.
Powerful, yet extremely quiet in operation, the extract rate is 85m³/hr (23 ltr/sec).

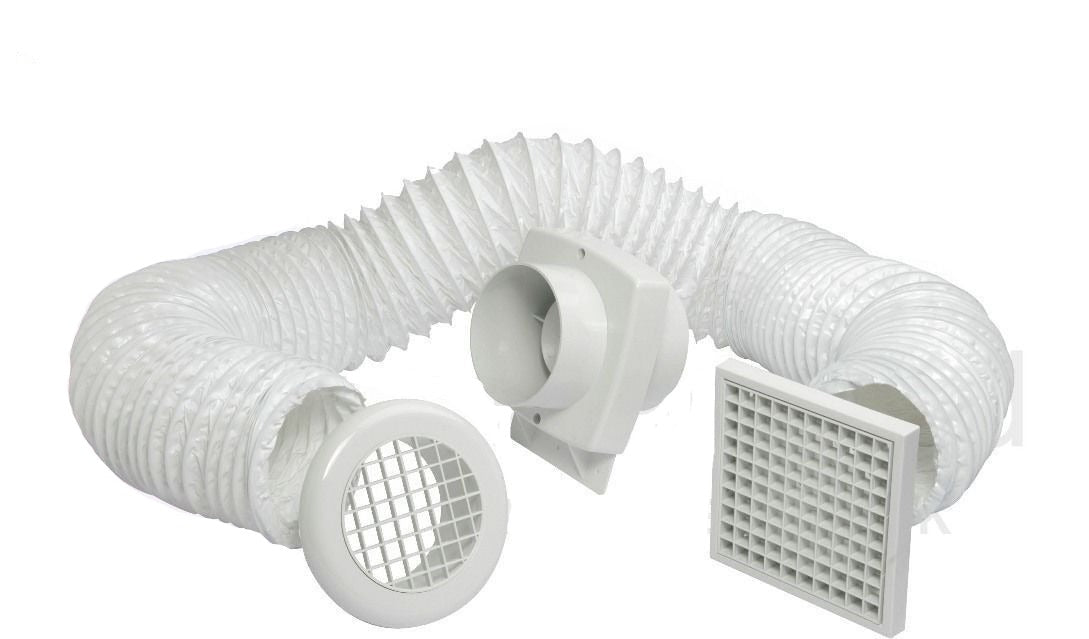

Available with or without a timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting, one internal (white) and one external wall grille, fixing screws, plugs and straps to secure the duct to the grilles.
Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
Designed to comply with the 2006 Building Regulations on Ventilation (F1).
Installation
The shower fan is easy to install in the average loft/ceiling recess as after the hole has been cut in the ceiling of the shower/room, all other work is continued outside the living area.
Electrical
220-240V - AC 50Hz.
Single phase consuming 14 watts.
Technical Specification
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 db(A).
• Maximum operating temperature: 40°C
  • guaranteeQuality checked
  • Free ShippingStandard Delivery
  •


Made by Manrose / Intervent label on Box
VSF100T (Timer)
VSF100S (Standard)
Please selct which fan kit you need above
3 Year Warranty
- This Fan is suitable for mounting above a ceiling or use where longer duct runs are needed
- The fan is mounted in the duct
Manrose/ Intervent VSF100  In-Line Tube Shower Fan Kit with PVC Ducting & Grille 100mm 240V
Designed for the safe ventilation of bathrooms, toilets and shower rooms, these 100mm (4") in-line extractor fans remove any risk of an electric shock in wet areas as the fan is mounted remotely.
Powerful, yet extremely quiet in operation, the extract rate is 85m³/hr (23 ltr/sec).
Available with or without a timer, the fan kits are supplied complete with fan unit, one length of PVC flexible ducting, one internal (white) and one external wall grille, fixing screws, plugs and straps to secure the duct to the grilles.
Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.
The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.
Designed to comply with the 2006 Building Regulations on Ventilation (F1).
Installation
The shower fan is easy to install in the average loft/ceiling recess as after the hole has been cut in the ceiling of the shower/room, all other work is continued outside the living area.
Electrical
220-240V - AC 50Hz.
Single phase consuming 14 watts.
Technical Specification
• Maximum pressure: 20 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 41.0 db(A).
• Maximum operating temperature: 40°C
