Extract Fans

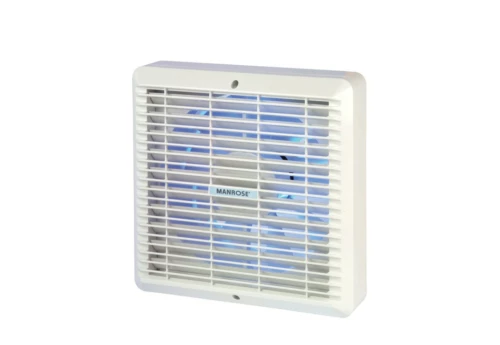

Manrose XF Auto Shutter Extractor Fan Std Timer Pullcord Humidity 4
£26.99
Manrose XF Auto Shutter Extractor Fan Std Timer Pullcord Humidity 4" 5" 6"

Manrose XF Auto Shutter Extractor Fan Std Timer Pullcord Humidity 4" 5" 6"

Designed for wall, ceiling or window mounting, the Automatic extractor fan range is available in ten options, all incorporating thermoactivated internal shutters behind the interior grille which open silently approximately 45 seconds after the fan is switched on.

• The range is available in three sizes - 100mm (4"), 120mm (5") and 150mm (6").

• The extract rate of the 100mm series is 85m3 /hr, 23 litres per second, whilst the 120mm units for larger bathrooms, toilets and utility rooms are 56% more powerful with an impressive extract rate of 130m3 /hr, 36 litres per second. The largest fan in this range, the 150mm (6"), has a maximum performance of 230m3 /hr, 64 litres per second.

• Power is provided by a single phase induction motor with pre-oiled bearings for a maintenance-free life.

• The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

• Designed to exceed the Building Regulations on Ventilation (F1).



XF100/120A/XFA150BS - Standard model for remote switching

XF100/120AP/XFA150BP - As above supplied with pullcord switch

XF100/120AT/XFA150BT - Timer model incorporating integral adjustable electronic timer (1-20 mins)

XF100/120ATP/XFA150BTP - As above with pullcord override switch Requires - no switched live

XF100/120AH/XFA150BH - Humidity control which is adjustable between 40 and 95% RH Complete with integral adjustable timer (1-20 mins)

XF100/120AHP/XFA150BHP - As above with pullcord override switch. Requires - no switched live

XF100/120APIR/XFA150BPIR - PIR activated model with timer for presence detection - (1-20 mins) Requires no switched live


Click to edit text
Manrose RT DECO100 4
£19.99

Please also choose the model you require and if any fitting parts are needed above


Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning designed for easy installation and can be wall, ceiling or window mounted.

We offer three options; Standard model , Timer model which incorporate an adjustable timer and Humidistat modes are available which are designed to switch the fan "on" as the humidity rises in the bathroom and "off" as it returns to normal level.

Standard Model requires and Switch live and Neutral

Timer model requires a Live, switched live, and a neutral

Humidity model require a Live and Neutral (Switch live if timer is needed)

Electrical

240V ~ A.C. 50Hz Single phase consuming 20 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. It requires a switched live, and a neutral only (no permanent live supply necessary)

Motor

Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation

Deco series designed to be mounted on walls or ceilings, through 100mm (4") diameter flexible or rigid pipes. Also suitable for use with the Manrose low profile flat channel ducting systems.

Performance

The extract rate of all models is 75m³hr

Additional Data

Maximum pressure: 20 p.a. Fan speed: 2400 r.p.m.

Sound volume: 41.0 dB(A) Maximum operating temperature 40° C

Manrose IPX5 Quiet Fan QF100X5 Standard Timer Humidity Bathroom Fan 4
£40.99

Item specifics

Condition:
New
Brand: Manrose
Colour: White Type: Bathroom Fan
Voltage: 220 V - 240v 50Hz MPN: Does Not Apply
Fan Type: Quiet Fan Features: IPX5, On/Off, Overrun Timer, Humidifier
Decibel Level: 27dB(A) at 3m Finish: White
Back Draught Shutter: Yes Power Source: Electric
Uk Plug: No Switch Type: Timer
Fan Model: Please select from drop down menu
The Manrose Quiet Fan is the latest in domestic ventilation to incorporate
 a high extraction rate whilst producing an incredibly quiet running volume
 all with the additional flexibility of being IPX5 compliant. IEE Regulations
 (U.K.) allow for IPX5 fans to be installed into zone 1 without the need
 for low voltage transformer making this comprehensive range ideal for
 bathrooms and toilets.

 The unit also comes complete with a performance enhancing turning
 vane system located in the spigot to improve performance by maintaining
 a high output.

  • IPX5 rated
  • High quality, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
  • Manufactured using high gloss ABS thermoplastics for strength and durability
  • Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4” (100mm) domestic fans.
  • An impressive extraction rate of 75m3/hr, 21 litres per second
  • Low energy motor with a maximum consumption of 7 Watts
  • Low SFP of just 0.33W/l/s
  • Complete with integral backdraught shutters
  • Complies with both Part F & L
  • Suitable for ceiling or wall mounting

Electrical
 220-240V - AC. 50Hz Single Phase consuming 7 Watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.
 Additional Data
 Maximum Pressure: 23 p.a.
 Fan Speed: 2300 r.p.m.
 Sound Volume: 27 dB(A)
 Maximum Operating Temperature: 40°C

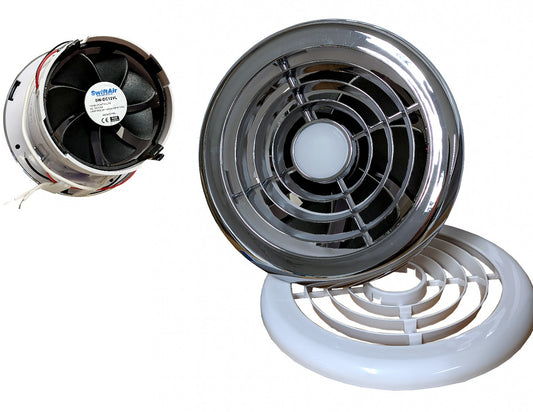

Extractor Light 12v or 24v Volt DC Caravans Motor homes Marine Shower Fan 4
translation missing: en.products.product.regular_price £24.99
translation missing: en.products.product.regular_price £24.99
Please select which model and type you require from drop down menu

Comes with white and chrome bezel

A compact combined extractor fan with an integral halogen light. Designed for installation in galleys, showers and toilets, ideal for marine and other leisure applications.

Long life computer motor which will run continuously, only 2.8 watts.

12 Volt DC motor or 24 Volt DC motor (please select above)
12v DC Motor
Voltage - 12v
Watts - 3.7w
Lamp - 3w (12v) MAX
Bulb Type - MR16
Extract rate - 64m3/hr or 18 litres per second
24v DC Motor
Voltage - 24v
Watts - 4.8w
Lamp - 3w (24v) MAX
Bulb Type - MR16
Extract rate - 64m3/hr or 18 litres per second
The fan and light may be switched on together or used independently.

Easy to install and maintain.

Available in White and Chrome finish.

Designed for Wall/Ceiling or Panel Mounting
SLIGHT100S BATHROOM EXTRACTOR SHOWER FAN LIGHT WHITE Wall Mounted 12v LED
translation missing: en.products.product.regular_price £34.99
translation missing: en.products.product.regular_price £34.99

Swiftair SLIGHT100S - STANDARD MODEL - WHITE

Wall or Ceiling

- Stylish Design

- Effcient Extraction Rate 60 m3/h (19 l/s)

- Small / Medium Room Ventilation

- LED Light

- Transformer Included

- 12v can be fitted in Zones 1&2 making it the perfect fan for your shower and bathroom

Dimensions

Unit: 160 x 160 x 115 + Fan profile 20mm

Transformer: 165 x 85 x 65mm

The SLIGHT Model is designed for use within the bath/shower areas and are fitted with a long life 12v AC~ motor. The low voltage supply is from a transformer which is supplied with each fan.

Transformer should be located out side the splash zone.

Using the latest LED technology, the SLIGHT100S fan offers a stylish combination of lighting and ventilation. Unlike many shower cubicle kits, this product is designed to extract from small to medium sized bathrooms with LED lighting.

The White ABS complements the unusual front style, whilst the LED offers a Warm glow (Please see picture) adding warmth to even the coldest bathroom.




SDF100 Std Timer Pull Cord Humidity Bathroom Shower Extractor Fan 4
£10.99
SDF100 Std Timer Pull Cord Humidity Bathroom Shower Extractor Fan 4" 100mm

SDF100 Std Timer Pull Cord Humidity Bathroom Shower Extractor Fan 4" 100mm



Silavent SDF fans provide effective levels of ventilation and extract rates to meet 2010 Building Regulation requirements, to significantly reduce the build-up of condensation and mould.

Silavent fans have a superb reputation for reliability and ease of installation.

** Please Select which items you need above **

Back Draught shutter will need to be taped to spigot of fan (only has 1 spring)

Models Available

Standard Model On/off

Timer Model (Run on timer) - This Listing relates to this product

Pull Cord Model

Humidity Model (Comes with Timer if needed)

Humidity Pull Cord Model

Application:

Bathroom and toilet

Key features:

Provide effective levels of ventilation

Modern fascia for discreet integration within the bathroom or toilet

Extract rates to meet 2010 Building Regulation requirements

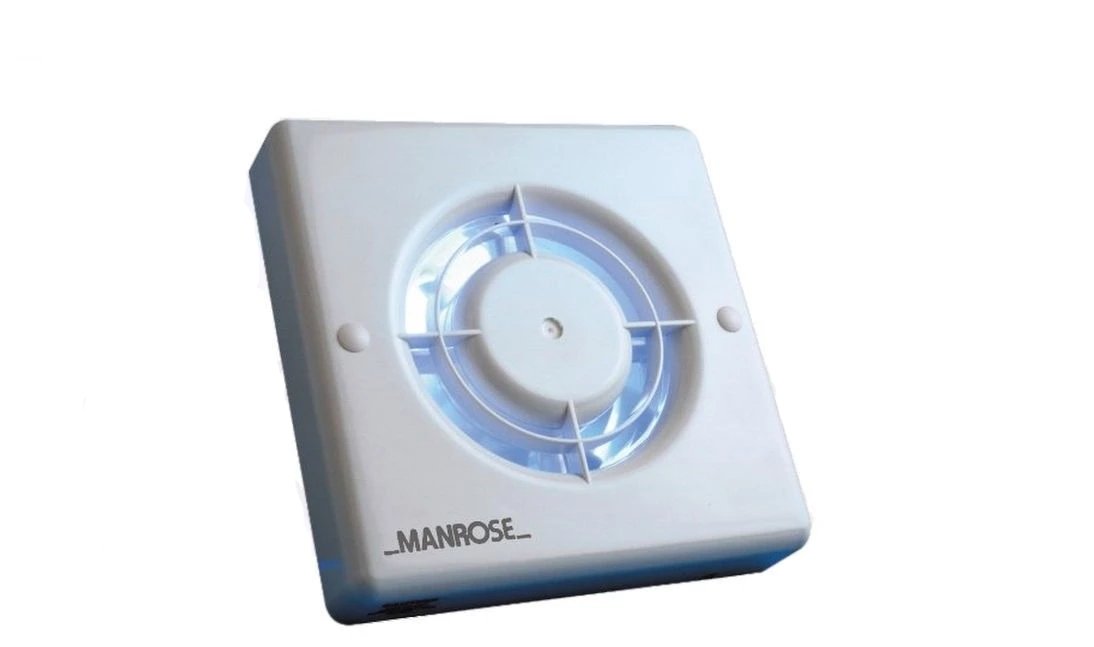

Manrose XF 4
£16.99
Manrose XF100 XF120 XF150B Range Bathroom Toilet Domestic Extractor Fans

Manrose XF100 XF120 XF150B Range Bathroom Toilet Domestic Extractor Fans

XF100 Range

Designed for wall or ceiling, this comprehensive range offers a wide selection of models for use in bathrooms and toilets.

 Quiet and efficient, the 100mm (4") series has an impressive extract rate of 85m3/hr, 23 litres per second, and is available in the eleven options detailed opposite.

 The units are all manufactured using high gloss ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

 Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance- free life.

 Designed to comply with the Building Regulations on Ventilation (F1).

XF120 Range

Designed for wall or ceiling mounting, the efficient range of axial flow extractor fans are available in eleven options.

 The XF/WF120 range of 120mm (5") bathroom/toilet fans are quiet in operation, easy to install and possess the latest design technology.

 Designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 120mm (5") series of fans are 56% more powerful than their 100mm (4") counterparts, yet only 10% larger in surface area.

 The extract rate is 130m3/hr, 36 litres per second. Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life.

 The units are all manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning.

 The 120mm (5") series complies with the Building Regulations on Ventilation (F1).

XF150B Range

Designed for wall, ceiling or window mounting, the efficient and easy to install range of 150mm (6") extractor fans are available in twelve options, and are an alternative style and design to the traditional 6" kitchen style.

 The fans are suited to larger bathrooms, utility rooms, shops, offices, restaurants, etc. Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

 The extract rate for the 150B Series is 230m3/hr, 64 litres per second.

 Incorporating the latest technology and design, Manrose can now offer a complete family of 100mm (4"), 120mm (5") and 150mm (6") fans, all with the same styling.

 The units are all manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning.

 Designed to comply with the Building Regulations on Ventilation (F1).


Manrose CF100 Toilet Bathroom Extractor Fan Std Timer Pullcord Humidistat 4
£27.99
Manrose CF100 Toilet Bathroom Extract Fan Standard Timer Pullcord Humidistat 4"

Manrose CF100 Toilet Bathroom Extract Fan Standard Timer Pullcord Humidistat 4"

Please Select Model Above

CF100S Standard model for remote switching

CF100P As above supplied with pullcord switch (pullcord attached to fan)

CF100T Timer model incorporating integral adjustable electronic timer (1-20 mins)

CF100H Humidity control which is adjustable between 40 and 95%RH Complete with adjustable integral timer (1-20 mins)

Model Details

The CF100 centrifugal fans use the latest technology to provide extremely powerful, yet very quiet and vibration free ventilation. The CF100 ranges are designed for bathrooms, toilets, cloakrooms and utility rooms

Designed to move air over long distances, these units will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles.

All models are fitted with a built-in spring operated non-return flap into the discharge spigot to stop

Back draughts.

There are seven models in each series. The CF100 has an extract rate of 90m3/hr 20 litres per second

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Power to the CF100 range is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance-free life.

Designed to comply with the Building Regulations on Ventilation (F1).


Xpelair VX100 VX100T Bathroom Shower Toilet Extractor Fan Timer Std 4
£13.19
XPELAIR VX100 or VX100T Standard or TIMER Model

93224AW - Standard
93225AW - Timer

The XX100 is now discontinued and is now called VX100

VX100 4"/100mm single speed extract fan - On/Off

VX100T 4"/100mm single speed extract fan, with integral overrun timer adjustable from 30 seconds to 30 minutes

Range Description

A range of easy to install, slim profile, single speed extract fans. Suitable for a wide range of applications including bathrooms, shower rooms and toilets including zones 1 and 2. All suitable for wall and ceiling installation.

Electrical power rating (W)15.7

Extract performance (FID, M³/h) Max/Min -73

Extract performance (FID, l/s)Max/Min - 20

Specific Fan Power (SFP) (W/l/s) - 0.78

Operation Speeds -1

IPX Rating - 4

Weight (kg) -0.4
Vortice Record Extractor M10/4T 4
translation missing: en.products.product.regular_price £39.99
translation missing: en.products.product.regular_price £39.99

Vortice Record M10-4T Axial Bathroom Extract Fan With Timer
Spigot: 100mm (4 inch) diameter
Supply: 230V.
Performance: 85m3/hr (23.6l/s).
Protection: IPX4 (splashproof).
Sound: 39(Db)A.

The Vortice Record was the italian manufacturer's best selling model for over a decade due to its reliability and performance. Although it has been replaced with a more conventional square model (The Punto), Vortice still keep the Record fan available due to continuing demand!

Dimensions:
Height 176mm
Width 127mm
Depth (excluding spigot) 39mm
Spigot Depth 35mm

Technical data:
http://www.vortice.ltd.uk/local/range/9/0/range_technical_90_11630.pdf

If You Only Have Two Wires (Live and Neutral):
This fan can also be used as a 'non-timer' fan fed by just two wires (Live and Neutral) if the permanent live and the switch live terminals are 'linked together' - As with all mains electrical work, this should be done safely by a qualified electrician.

Vortice Punto Evo Gold 4
£54.00
Axial Fan in 4 metallic finishes Gold, Rose Gold, Black Gold,White Gold
Wall installations only
IP45 Rated
STY100 Humidity Timer Std 12v 4
£29.99
STY100H Humidity & Timer 12v 4" Extractor Bathroom Shower Fan Low Noise Zone 1-2

STY100H Humidity & Timer 12v 4" Extractor Bathroom Shower Fan Low Noise Zone 1-2

Swiftair STY100 12v - 1 Year Warranty

PLEASE SELECT WHAT YOU NEED ABOVE FROM THE DROP DOWN MENU

Comes with Backdraught Shutter + Transformer

Please see how to wire below on the transformer you will have II and I every thing going to the fan must be from the transformer

Standard Model: Live and neutral to transformer and 12v feed to fan

Timer model: Permanent Live and neutral to transformer >>>> II 12v - to Live (L), then II 12v to a Switch (not provided) then to switched live (S/L) , I to Neutral (N)

Humidity with timer: Permanent Live and neutral to transformer >>>> II 12v - to Live (L), then II 12v to a Switch (not provided) then to switched live (S/L) , I to Neutral (N)

Humidity Only: Permanent Live and neutral to transformer >>>> II 12v - to Live (L), I to Neutral (N)

Specification:

Air Extraction m3/hr : 70m3/hr
Air Extraction L/s : 19 L/s
Noise : 30dB(A) (Low Noise)
Watts : 15W

STY100 12v White Extractor Fan Range Overview

100mm (4") Bathroom/ Toilet Fans incorporates the latest technology and design and offers the most comprehensive range with the widest choice of options and variations.

Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall mounted.

There are several options available; Standard model for remote switching,and Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops.

Construction
These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.

Electrical

Transformer 220-240V ~ A.C. 50Hz Single phase.

Fans - 12v (15 watt)

These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

Motor
Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.

Installation
STY100 Series designed to be mounted on walls through 100mm (4") diameter flexible or rigid pipes.

Performance
The extract rate of all models is 70m³hr, 19 litres per second.

Additional Data
Maximum pressure: 15 p.a. Fan speed: 2400 r.p.m.

Sound volume: 30.0 dB(A) Maximum operating temperature 40° C.


Silavent/Domus SVC100 Auto Shutter Extractor Fan Std Timer Pull Cord Humidity
£24.99
Silavent/Domus SVC100 Auto Shutter Extractor Fan Std Timer Pull Cord Humidity

Silavent/Domus SVC100 Auto Shutter Extractor Fan Std Timer Pull Cord Humidity

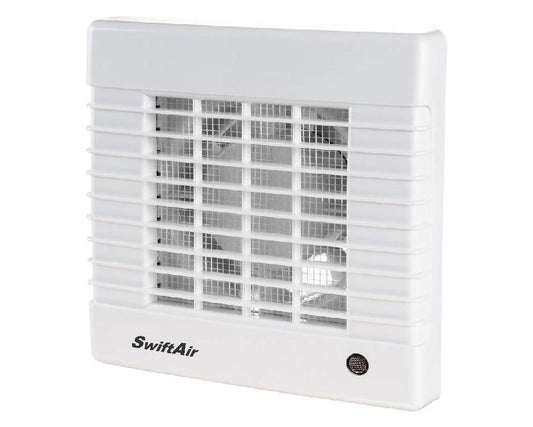

100mm Auto Shutter Axial Fan



Part of the SVC Range



Silavent SVC axial fans have been designed to include auto shutters that prevent backdraught from entering a bathroom or toilet.



Silavent fans have a superb reputation for reliability and ease of installation.



Shutters can take up to 45 seconds to open



Application:



Bathroom and toilet



Models Available



Standard Model On/off

Timer Model (Run on timer)

Pull Cord Model

Humidity Model (Comes with Timer if needed)

Humidity, Pull Cord, Timer Model



Key features:



Automatic shutters prevent backdraught from entering bathroom or toilet

Shutters are operated mechanically on the pull cord version or via the thermoactuator system on all other models


Silavent Domus Polypipe SVC150 6
£96.99
Silavent Domus Polypipe SVC 6" 150mm Kitchen Utility Extractor Fan

Silavent Domus Polypipe SVC 6" 150mm Kitchen Utility Extractor Fan

Please select model from drop down menu above

Automatic shutters prevent backdraught from entering kitchen or utility room

quiet in operation

shutters are operated mechanically on the pull cord version or via thermoactuator system on all other models


SAQ 4
£18.99
PLEASE SELECT SIZE AND MODEL FROM DROP DOWN MENU

Fan Features:
white finish
Suitable for Bathrooms, Toilets, Wet Rooms, Shower Rooms (excluding zones 1 & 2).
Long life ball bearing motor.
1 Year warranty.
Meets building regulation airflow rates.
Fan Specification
100mm 4" dia fan spigot (will fit in a 4" round hole).
125mm 5" dia fan spigot (will fit in a 5" round hole).
150mm 6" dia fan spigot ( will fit in a 6" round hole).
Can be wall mounted.
4" fan up to 78 m3/h airflow rate (21 l/s).
5" fan up to 148 M3/hour (41 l/s)
6" fan up to 240 M3/hour (66 l/s)
Rated to IP34
4 " fan 5.6w power consumption.
5" fan 9.3 w power consumption
6" fan  20 w power consumption
4" fan 26 dB(A) sound level at 3m distance from fan.
5" fan 31 dB(A) sound level at 3m distance from fan
6" fan 33 dB(A) sound level at 3m distance from fan
Requires a 240v electrical supply, normally connected to your lighting circuit.
Can be connected to same size duct no longer than 2m.
SA100 4
£8.99
Please select what you would like from the drop down menu
Standard Model On/Off
Timer 0-15min – Live, Neutral & Switched live will be needed
Humidistat comes complete with Timer
If only want to use the humidistat function you will need a Neutral and Permanent Live
Comes with adjustable fixing lug to secure the spigot in the pipe (philips screw driver needed)
Specification:
LOW PROFILE - 10mm
Air Extraction m3/hr : 80m3/hr
Air Extraction L/s : 22 L/s
Noise : 33dB(A) (Low Noise)
Watts : 15W
SA100 Extractor Fan Range Overview
100mm (4") Bathroom/ Toilet Fans incorporates the latest technology and design and offers the most comprehensive range with the widest choice of options and variations.
Attractively styled in high gloss ABS thermoplastics for modern appearance and ease of cleaning, designed for easy installation and can be wall, ceiling mounted.
There are several options available; Standard model for remote switching, Timer models which incorporate an electronic time delay switch. Humidistat Control models are also available which are designed to switch on the fan as the humidity rises in the bathroom and off as it drops. The Passive Infra-Red model is sensitive to movement and will switch on the fan when someone enters a room and switch it off when the room is vacated.
Construction
These fans are moulded in impact resistant high gloss ABS thermoplastics for strength, durability and finish.
Electrical
220-240V ~ A.C. 50Hz Single phase consuming 15 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
Motor
Single phase induction motor with pre-oiled bearings fitted for a long maintenance free life and protected by a thermal fuse.
Installation
SA100 Series designed to be mounted on walls or ceilings through 100mm (4") diameter flexible or rigid pipes.
Performance
The extract rate of all models is 80m³hr, 22 litres per second.
Additional Data
Maximum pressure: 15 p.a. Fan speed: 2400 r.p.m.
Sound volume: 33.0 dB(A) Maximum operating temperature 40° C.

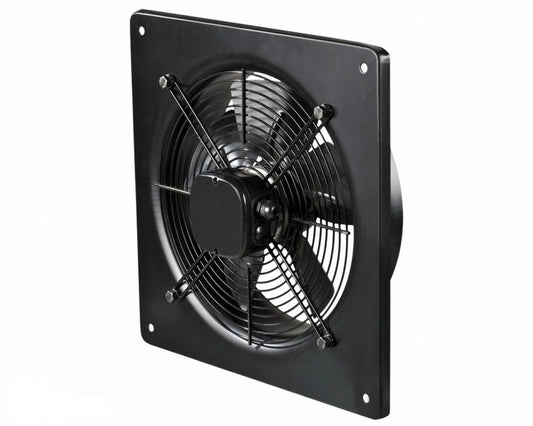

Plate Fan Commercial Extractor Kitchen Restaurant 200 to 450 Dia Up to 4800 m3/h
